Green 4 meters pipe

Name: Green 4 meters pipe
SKU: P-157-AP
Price: 11.81 USD
Availability: InStock

Green 4Meters steel pipe PE coated

Be the first to review this product

USD$11.81

Stocks

Farnham: 300.9

Los Angeles: 800

Lawrenceville: 2000

Galvanized steel pipe coated with green high-density polyethylene (HDPE)
1 1/8 in (28mm) diameter
157 in (4000mm) length
Item only available in the United States
MINIMUM order quantity of 200 pipes

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

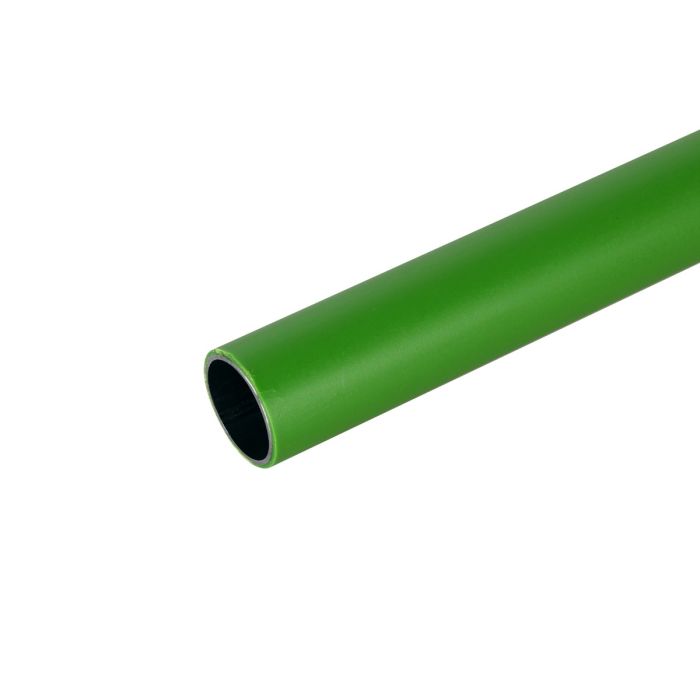

The P-157 is a 1 1/8 in (28mm) external diameter galvanized steel pipe coated with colored high-density polyethylene.

It is recommended to consult the page How to calculate the loading capacity before designing your structures.

P-157 has an electric conductivity (ESD) version:

Stainless steel (no polyethylene coating): EP-157-ST

All the P-157 pipes of the Flexpipe system are compatible with most other 28mm systems on the market. This allows any surplus left by your previous systems to be used.

Technical Information

More Information
Units per package (sold separately)	200
Length inches	157 in
Pipe outside diameter inches	1 1/16 in (27.6 mm ± 0.2 mm)
Pipe inside diameter inches	15/16 in (23.4 mm ± 0.1 mm)
Coating thickness inches	1/16 in (1.1 mm ± 0.1 mm)
Steel thickness inches	1/16 in (1.0 mm ± 0.02 mm)
Unit weight pounds	5.566 lbs (2.530 kg)
Package dimensions inches	157 1/2 X 4 1/4 X 2 1/4 in (4000 mm X 108 mm X 57 mm)
common uses	Carts, Racks, Flow Racks, Workstations, Boards
Compatible joint systems	Creform, Fastube
Noncompatible joint systems	Trilogiq
RoHS certification	Yes
Recyclable	Yes
Reusable	Yes
Electric conductivity (ESD)	No
Material	Cold rolled steel (SPCC)
Steel hardness (HRB)	70
Steel grade	Q195
Welding process	High frequency welding
Steel pipe treatment	Galvanized
Coating material	High density polyethylene (HDPE)
Finish	Matte
UV resistance	Good
System operational temperature	-40°F à 122°F (-40°C à 50°C)
Pantone	7740C
