Open intersec. Joint
- Connector used to assemble the HJ-7A joint set
- Compatible with 28 mm pipes
- 225 units per box (please order individually)

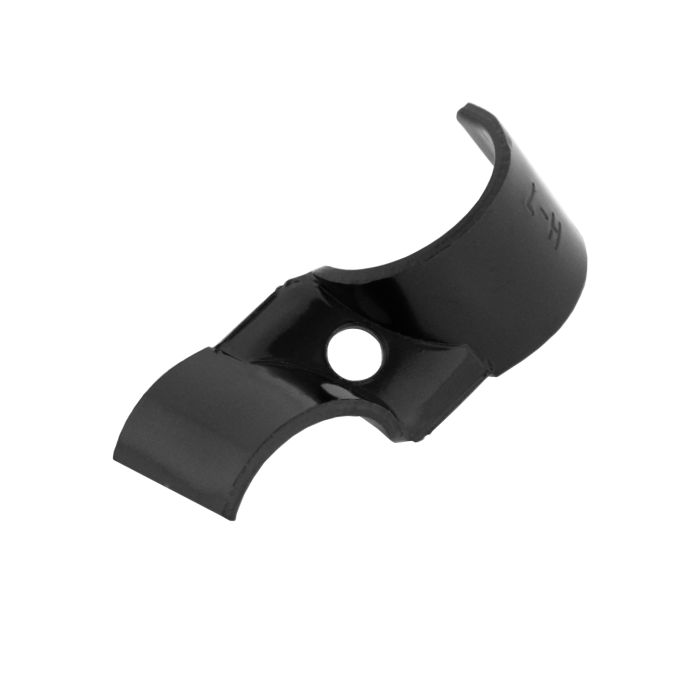

The H-7A is a black metal single joint used to assemble the HJ-7A joint set. This piece makes it possible to connect two pipes perpendicularly, one above the other, to create an open intersection. It can also be used to strengthen structures.
Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: H-7ANP
Want to reuse parts of your old system?
The H-7A Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 225 units = 1 box).
| Units per box (sold separately) | 225 units per box |
|---|---|
| Length inches | 2 5/8 in (67 mm) |
| Height inches | 3/4 in (19 mm) |
| Width inches | 1 in (25 mm) |
| Depth inches | 1 5/16 po (33mm) |
| Steel thickness inches | 1/8 in (2.5mm) |
| Unit weight pounds | 0.088 lbs (0.040 kg) |
| Box dimensions inches | 11 X 9 X 5 in (280mm X 225mm X 130mm) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| Noncompatible joint systems | Trilogiq, Fastube |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | Low |
| Reusable | Yes |
| Electric conductivity (ESD) | No |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Glossy |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Black cathodic electrodeposition (Ecoating) |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | None |
| Positioning guide | None |
| Additional reinforcement hole | None |
