Bolt quick release

Name: Bolt quick release
SKU: M6-25BHAN
Price: 5.52 USD
Availability: InStock

Quick release lever bolt black zinc

Be the first to review this product

USD$5.52

Stocks

Farnham: 2331

Los Angeles: 556

Lawrenceville: 844

Ideal for adjustable mechanisms
Ergonomic handle
E-coated for optimal longevity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

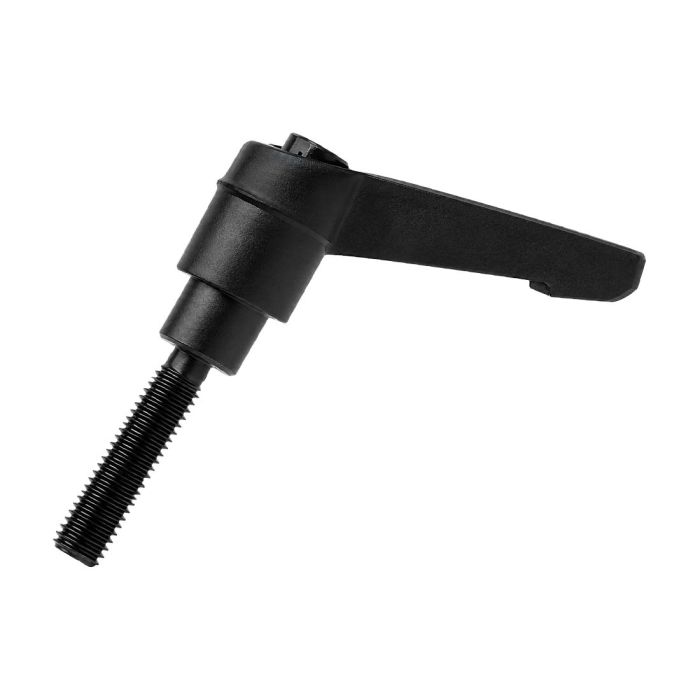

The M6-25BHAN is a quick-release metal bolt. We like to combine it with an HJ-1 to create height adjustable shelves

It is a ratchet style fixing screw that can be used in conjunction with
our M6-N to assemble our HJ-connectors.

The handle allows making quick adjustments to your structure effortlessly, depressing the button and lifting lever disengages the ratchet mechanism permitting the operator to relocate the handle position.

Great for adjusting heights, such as for a screen monitor.

Installation Steps:
See the installation steps tab to view how to assemble this bolt.

Technical Information:
(It is essential that the bolt is tightened between 12-14 N.m torque)

Want to reuse parts of your old system?
The M6-25BHAN is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

Technical Information

More Information
Box Quantity	250
Weight (kg/lbs)	0.077 lb (0.035 kg)
Box Dimensions	Bag
Common Usage	To create height adjustable shelfs
Compatible brand	Flexpipe, Creform, Fastube
Non Compatible Brand	Trilogiq
Primary Material	SCM440 with black cathodic electrodeposition (Ecoating)
Temperature Resistance	-40°F to 122°F (-40°C to 50°C)
Frequency of Use	Low
Electric Conductivity (ESD)	Yes

Installation Steps

Ensure you have the following parts:
- 1x Joint set of your choice
- 1x M6-25BHAN bolt
- 1x M6-N nut
- 2x 28mm pipes of your choice
Group connectors around corresponding pipes.
Make sure to put the M6-25BHAN bolt on the most accessible side and insert the smaller diameter of the nut into the corresponding hole.
Loosely tighten M6-25B bolt and M6-N nut.
(Press the nut into the connector using your finger tip and turning the bolt handle into the nut with other hand).
Fully insert all pipes
Tighten completely the M6-25BHAN and the M6-N together until the Joint set is firmly attached to the pipes. A force between 12-14 Nm is recommended for this step.
Lift the handle and press the center to turn handle into desired position.
