SKU
EP-157-ST
Stainless 4 meters pipe (ESD)
Stainless steel 4 meters pipe
Stocks
Farnham: 0
Los Angeles: 0
Lawrenceville: 200
- Electric conductivity (ESD)
- Stainless steel pipe
- 1 1/16 in (28 mm) diameter
- 157 in (4000 mm) length
- Item only available in the United States
- MINIMUM order quantity of 200 pipes

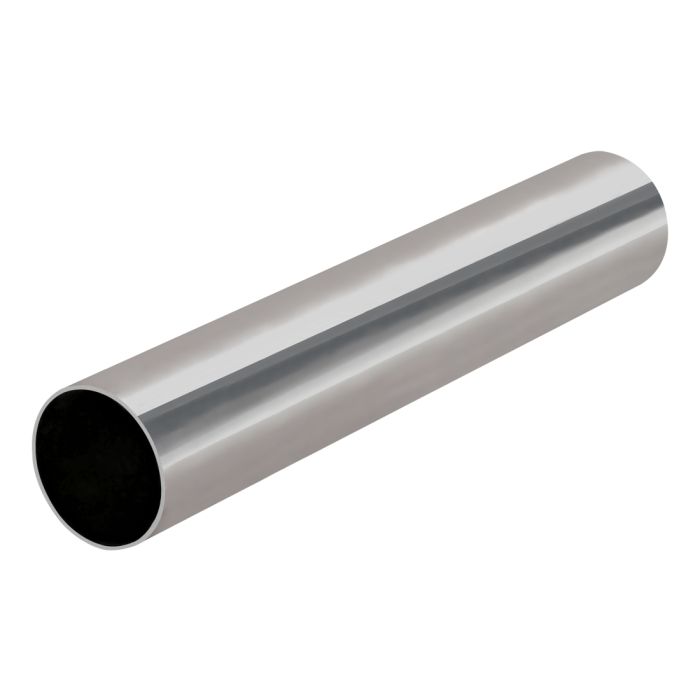

The EP-157-ST is a 1 1/16 in (28 mm) external diameter electric conductivity (ESD) metal pipe.
It is recommended to consult the page How to calculate the loading capacity before designing your structures.
All the P-157 pipes of the Flexpipe system are compatible with most other 28mm systems on the market. This allows any surplus left by your previous systems to be used.
| Image Tag | /e/s/esd-en_4.png |
|---|---|
| Units per package (sold separately) | 200 |
| Length inches | 157 in (3987.8 mm) |
| Pipe outside diameter inches | 1 1/16 in (27.6 mm ± 0.2 mm) |
| Pipe inside diameter inches | 1 in (26 mm ± 0.2 mm) |
| Steel thickness inches | 1/32 in (0.7mm ± 0.15mm) |
| Unit weight pounds | 4.092 lbs (1.856 kg) |
| Package dimensions inches | 157 1/2 X 4 1/4 X 2 1/4 in (4000 mm X 108 mm X 57 mm) |
| common uses | Carts, Racks, Flow Racks, Workstations, Boards |
| Compatible joint systems | Creform, Fastube |
| Noncompatible joint systems | Trilogiq |
| RoHS certification | Yes |
| Recyclable | Yes |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Stainless steel |
| Steel hardness (HRB) | 75-80 |
| Steel grade | STS409 |
| Welding process | High frequency welding |
| Coating material | Stainless Steel |
| Finish | Highly reflective |
| UV resistance | Very high |
| System operational temperature | -4°F to 752°F (-20°C to 400°C) |
