Round angle joint set
In stock
- Compatible with 28 mm pipes
- Assembly required
- Joint set with antistatic properties (ESD)

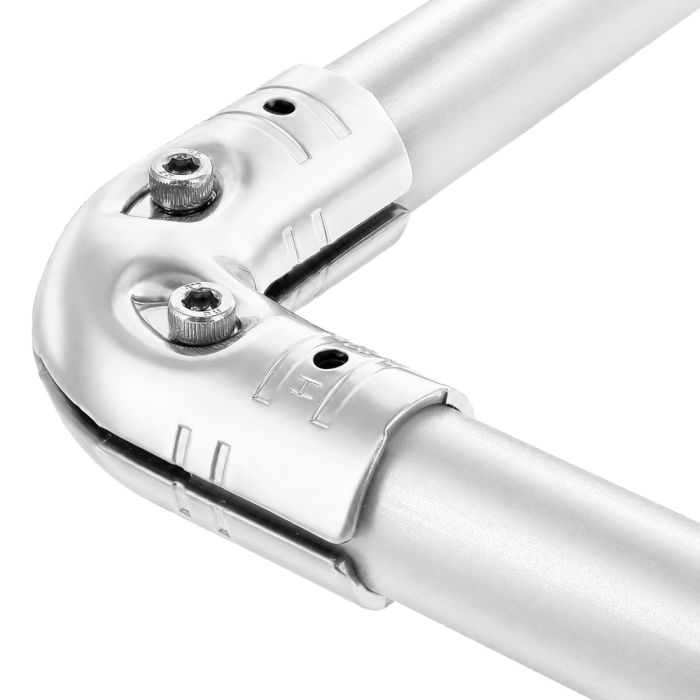

The HJ-90NP is a chrome-plated joint set with antistatic properties (ESD) that allows connecting two 28 mm pipes to create a 90-degree corner. This joint set is often used for ergonomic cart handles.
To assemble an HJ-90NP you need to put two H-90NP together with two M6-25BWZ bolts and two M6-NWZ nuts.
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 4 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Non-Electric Conductivity Version:
A version of this joint set is offered without antistatic properties: HJ-90
Want to reuse parts of your old system?
The HJ-90NP Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
| Units per box (sold separately) | NA |
|---|---|
| Needed parts | 2x H-90NP + 2x M6-25BWZ + 2x M6-NWZ |
| Length inches | 3 1/8 in (79 mm) |
| Width inches | 1 5/16 in (33 mm) |
| External height inches | 2 3/16 in (55mm) |
| External width inches | 2 3/16 in (55mm) |
| External depth inches | 1 5/16 in (33mm) |
| Steel thickness inches | 1/8 in (2.5 mm) |
| Unit weight pounds | 0.488 lbs (0.222 kg) |
| common uses | Handle corner |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Frequency of use | High |
| Reusable | Yes |
| Reusable parts | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Corrosion resistance | 240 hours salt spray corrosion test |
| Finish | Shiny |
| UV resistance | High |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Chrome plating |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 8 striation grip lines |
| Positioning guide | 4 positioning guide lines |
| Additional reinforcement hole | 4 reinforcement holes |
- Ensure you have the following parts:
- 2x H-90NP
- 2x M6-25BWZ bolts
- 2x M6-NWZ nuts
- 2x 28mm pipes of your choice
- 1x T-HANDLE 5mm hex key
- Group the two H-90NP connectors around the first and the second pipe, between the first and the second positionning guidelines.
- Fix the connectors together by placing the M6-25BWZ bolts with the M6-NWZ nuts in the corresponding openings. Make sure to place the bolts on the most accessible side.
- Tighten completely until the HJ-90NP joint set is firmly attached to the two pipes. A force between 12-14 Nm is recommended for this step.
