Round Joint Set Steel
In stock
- Compatible with 28 mm pipes
- Nuts and bolts are included, but packaged separately
- Assembly required
- Used to create handle

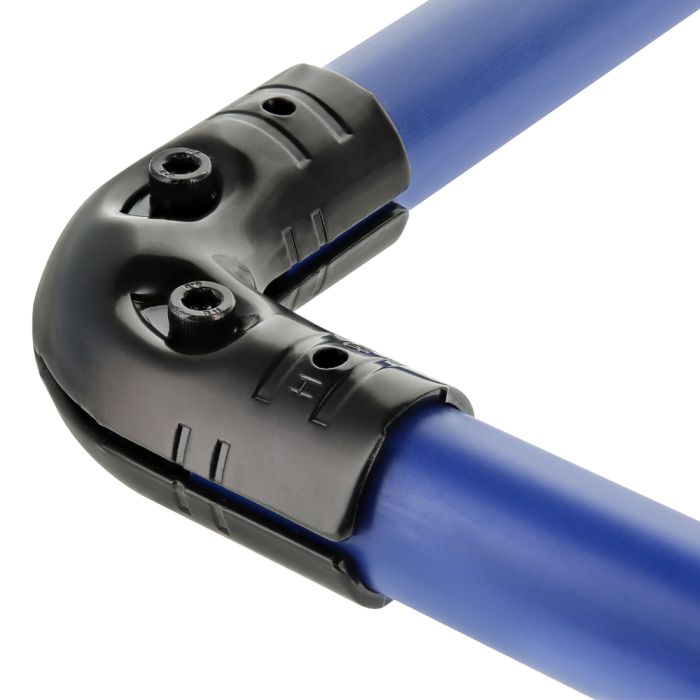

The HJ-90 is a black metal joint set that allows you to connect two 28 mm pipes to create a 90-degree corner. This joint set is often used for ergonomic cart handles.
To assemble an HJ-90 you need to put two H-90 together with two M6-25B bolts and two M6-N nuts.
Technical Information:
This joint set is designed with 8 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 4 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A858, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Installation Steps:
See the installation steps tab to view how to assemble this connector.
Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-90NP
Want to reuse parts of your old system?
The HJ-90 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.
| Length | 1 5/16 in (33 mm) |
|---|---|
| Height | 1 5/16 in (33 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5 mm) |
| Weight | 0.488 lb (0.222 kg) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Trilogiq (28.6 mm) |
| Primary Material | Hot rolled steel (SPHC) with black cathodic electrodeposition (Ecoating) |
| Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
| Electric Conductivity (ESD) | No |
| Manufacturing Technique | Stamping and deburring |
- Ensure you have the following parts:
- Group the two H-90 connectors around the first and the second pipe, between the first and the second positionning guidelines.
- Fix the connectors together by placing the bolts with the nuts in the corresponding openings. Make sure to place the bolts on the most accessible side.
- Tighten completely until the HJ-90 joint set is firmly attached to the two pipes.
