Double Tee Joint
- Reinforce structure
- Create an edge
- Works with H-13
- 100 units per box (please order individually)
Great solution for Parallel and Double Piping!
Generally used to reinforce the load bearing capacity of structures, the H-21 can also be used as a thrust bearing.

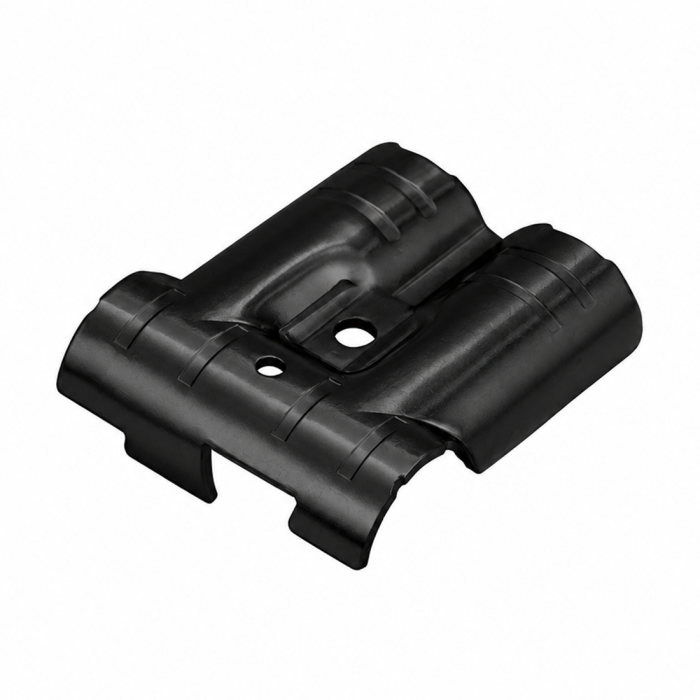

The H-21 is a black Double Tee Joint used to assemble the HJ-21 joint set. This joint can be used to strengthen structures or to create an edge on a flowrack or rack.
Just like the popular H-13 format, our Double Tee Joint H-21 takes it to the next level. Instead of using two HJ-1s for your parallel or double piping needs, the H-21 offers a stronger, faster and less expensive assembly process. Note that this fitting requires only 1 nut and 1 bolt for assembly.
Designed with the same spacing as H-13, the H-21 seamlessly integrates with existing setups, making it a versatile and convenient choice for various situations.
Experience the efficiency and reliability of the Double Tee Join as it works harmoniously with Creform's H-10 and H-9.
For an anti-static version see H-21NP.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 225 units = 1 box).
Box Quantity | 100 |
---|---|
Length | 3 7/32 in (82 mm) |
Height | 2 11/16 in (68.2625 mm) |
Width | 1 5/16 in (33 mm) |
Weight (kg/lbs) | 0.293 lb (0.133 kg) |
Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
Primary Material | Hot rolled steel (SPHC) with black cathodic electrodeposition (Ecoating) |
Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
Frequency of Use | Low |
Electric Conductivity (ESD) | No |
Manufacturing Technique | Stamping and deburring |
