SKU
HJ-6A

Extend Pivot Joint Set Steel

  • Adjustable from 15 degrees up to 260 degrees
  • Compatible with 28 mm pipes
  • Nuts and bolts are included, but packaged separately
  • Assembly required
CDN$5.69

In stock

+

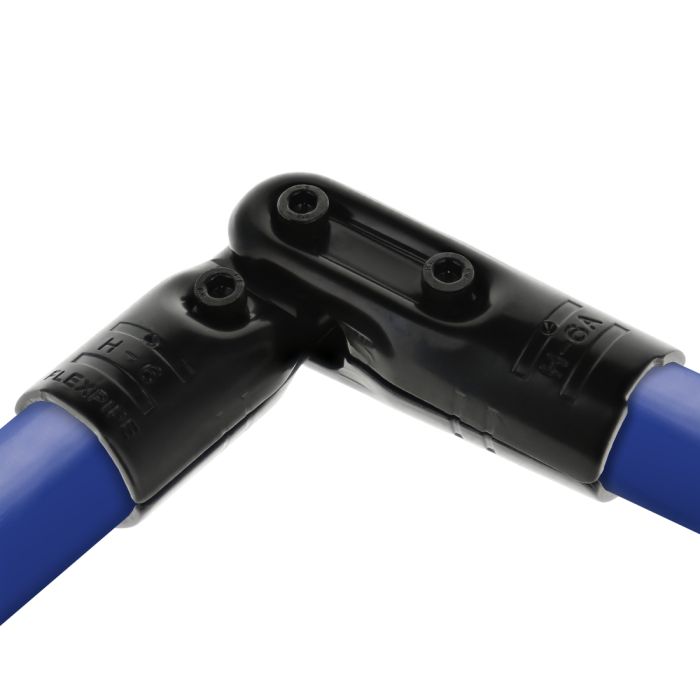

The HJ-6A is a black metal joint set that allows you to create a two-pipe intersection with an adjustable angle up to 260 degrees. This joint set allows working with a wider angle radius than the HJ-6 allows. It can be used for many applications such as the creation of angular sides and top or V-shaped racks with angles wider than 90 degrees. The distance created between the two pipes is used for supporting pannels or manufacturing parts.

To assemble an HJ-6A you need to combine two H-6A and two H-6 together with three M6-25B bolts and three M6-N nuts.

Installation Steps:
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-6ANP

Want to reuse parts of your old system?
The HJ-6A Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.


Please note that nuts and bolts are included, but packaged separately. Assembly is required.

More Information
Length 5 7/16 in (138 mm)
Height 1 5/16 in (33 mm)
Width 1 5/16 in (33 mm)
Material Thickness 1/8 in (2.5 mm)
Weight 0.609 lb (0.277 kg)
Compatible brand Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Non Compatible Brand Fastube, Trilogiq (28.6 mm)
Primary Material Hot rolled steel (SPHC)
Temperature Resistance -148°F to 572°F (-100°C to 300°C)
Electric Conductivity (ESD) No
Manufacturing Technique Stamping and deburring
  1. Ensure you have the following parts:
  2. Take the two H-6 connectors and group them around the first pipe.
  3. Fix the connectors by placing an M6-25B with an M6-N in the corresponding openings until it's firmly attached to the pipe.
  4. Group together with the two H-6A connectors around the second pipe and fix the connectors with an M6-25B and an M6-N in the corresponding openings until it's firmly attached to the second pipe.
  5. Insert the first pipe with the attached H-6 connectors in between the H-6A connectors and loosely tighten with the remainings M6-25B and the M6-N to both H-6 and H-6A connectors through corresponding openings.
  6. Position into the desired angle and tighten completely until the HJ-6A joint set is firmly attached to the first and the second pipe.
