Pivot point joint

Pivot point joint steel black
In stock
Only 4444 left

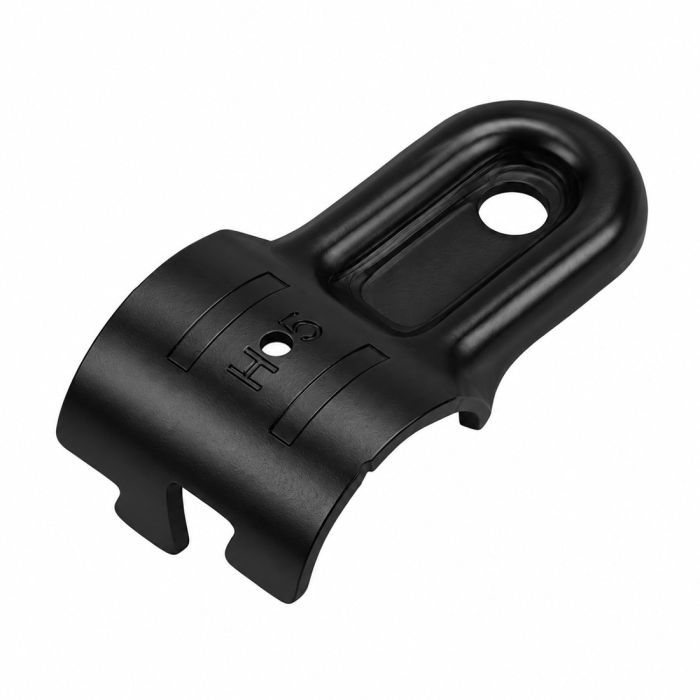

The H-5 is a metal single joint used to assemble the HJ-6 Flexpipe joint set. This connector can also be grouped with another H-5 to connect a pipe and a surface. The main difference between using this technique and using the HJ-15 connector is that the surface will be aligned with the pipe center and not the tube's edge when using the HJ-15.

The H-5 was designed with two internal striations for greater grip on the pipe's outer coating. Be sure to reinforce the H-5 if you are using them to support a surface. This can be done easily with two F-A85/8 screws.

The H-5 comes in a nickel-plated version called H-5NP. Be sure to select this version if you need to build antistatic structures.
More Information
Best SellerNo
Units per box225
Height inches5 5/16 in (135mm)
Width inches5 5/16 in (135mm)
Depth inches1 5/16 in (33mm)
Unit weight pounds0.099 lbs (0.045 kg)
Box dimensions inches11 X 9 X 5 in (279mm X 229mm X 127mm)
Compatible joint systemsFlexpipe, Creform
None compatible joint systemsTrilogiq, Fastube
None compatible joint systemsTrilogiq, Fastube
RoHS certificationYes
Compatible pipe systemsFlexpipe, Creform, Fastube
None compatible pipe systemsTrilogiq
Frequency of useModerate
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)0.65
UV resistanceHigh
System operational temperature-40°F à 122°F (-40°C à 50°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniquePressed and deburring
Striations for grip2
