Pivot point joint
- Connector used to assemble the HJ-6NP joint set
- Compatible with 28 mm pipes
- 225 units per box (please order individually)
- Electric conductivity (ESD) joint

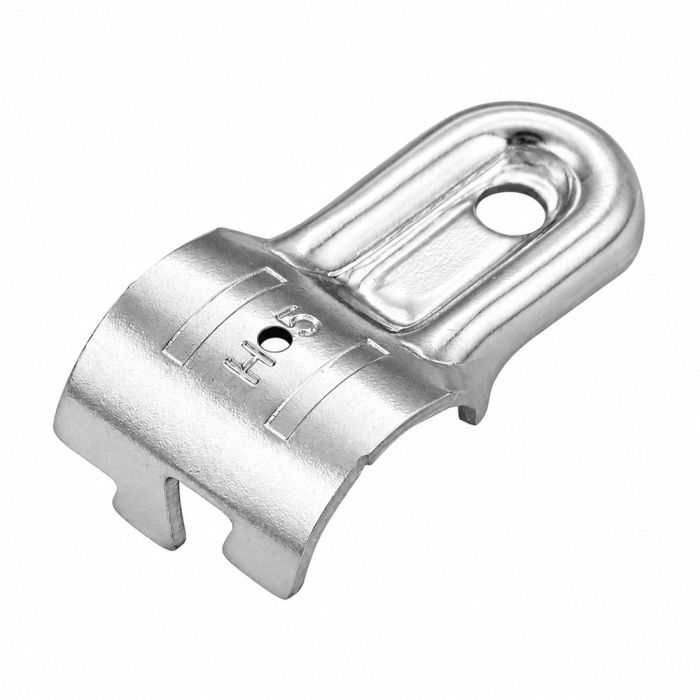

The H-5NP is a chrome plated single joint with antistatic properties (ESD) used to assemble the HJ-6NP joint set.
We suggest you to always have a box of H-5 or H-5NP in inventory, since it is the connector that you will used frequently in the configuration of your structures. If you would like to keep an inventory of the Flexpipe parts, this video could help you konw the percentage of each parts we suggest to order according to your needs.
Technical Informations:
This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes.
Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: H-5
Want to reuse parts of your old system?
The H-5NP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 225 units = 1 box).
Units per box (sold separately) | 225 units per box |
---|---|
Length inches | 2 11/16 in (68 mm) |
Height inches | 3/4 in (19 mm) |
Width inches | 1 5/16 in (33 mm) |
Depth inches | 1 5/16 in (33mm) |
Steel thickness inches | 1/8 in (2.5mm) |
Unit weight pounds | 0.099 lbs (0.045 kg) |
Box dimensions inches | 11 X 9 X 5 in (280mm X 225mm X 130mm) |
Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
Noncompatible joint systems | Trilogiq, Fastube |
RoHS certification | Yes |
Recyclable | Yes |
Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
Noncompatible pipe systems | Trilogiq (28.6 mm) |
Frequency of use | Moderate |
Reusable | Yes |
Electric conductivity (ESD) | Yes |
Material | Hot rolled steel (SPHC) |
Steel hardness (HRB) | 68-75 HRB |
Finish | Shiny |
UV resistance | High |
System operational temperature | -148°F to 572°F (-100°C to 300°C) |
Steel treatment | Chrome plating |
Manufacturing technique | Stamping and deburring |
Striations for grip | 2 striation grip lines |
Positioning guide | None |
Additional reinforcement hole | None |
