SKU
H-6NP

Pivot extension joint

Pivot extension steel cr
CDN$0.93
Stocks
Farnham: 591
Los Angeles: 71
Lawrenceville: 47
  • Connector used to assemble the HJ-6NP / HJ-6ANP / HJ-14NP joint sets
  • Compatible with 28 mm pipes
  • 225 units per box (please order individually)
  • Electric conductivity (ESD) joint

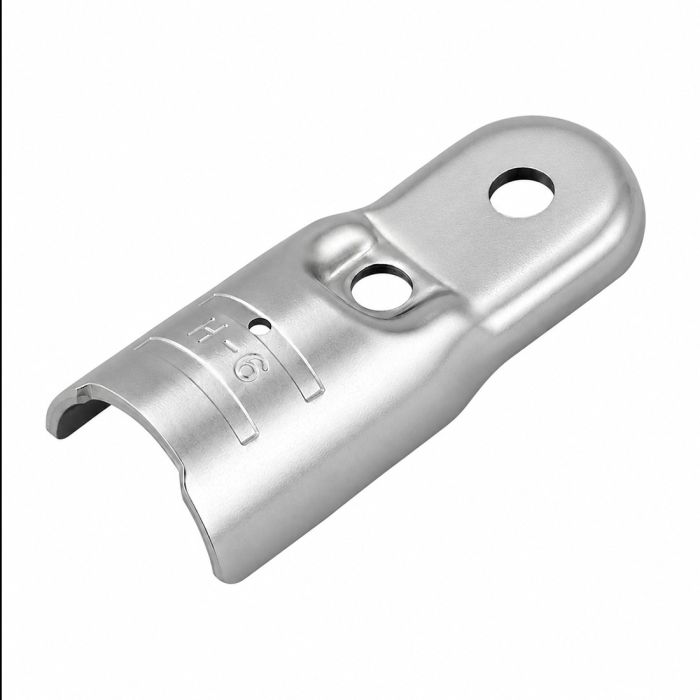

The H-6NP is a chrome plated single joint with antistatic properties (ESD) single joint used to assemble the HJ-6NP / HJ-6ANP / HJ-14NP joint sets.

We suggest you to always have a box of H-6 or H-6NP in inventory, since it is the connector that you will used frequently in the configuration of your structures having angular joints. If you would like to keep an inventory of the Flexpipe parts, this video could help you konw the percentage of each parts we suggest to order according to your needs.

Technical Informations:
This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes.

Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: H-6

Want to reuse parts of your old system?
The H-6NP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 225 units = 1 box).

More Information
Units per box (sold separately)225 units per box
Length inches3 1/8 in (79 mm)
Height inches3/4 in (19 mm)
Width inches1 5/16 in (33 mm)
Depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5mm)
Unit weight pounds0.130 lbs (0.059 kg)
Box dimensions inches11 X 9 X 5 in (280mm X 225mm X 130mm)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Noncompatible joint systemsFastube, Trilogiq (28.6 mm)
Noncompatible joint systemsTrilogiq, Fastube
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
Noncompatible pipe systemsTrilogiq (28.6 mm)
Frequency of useModerate
ReusableYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip2 striation grip lines
Positioning guide2 positioning guide lines
Additional reinforcement holeNone
