Lower clamp joint
- Connector used to assemble the HJ-15NP joint set
- Compatible with 28 mm pipes
- 300 units per box (please order individually)
- Electric conductivity (ESD) joint

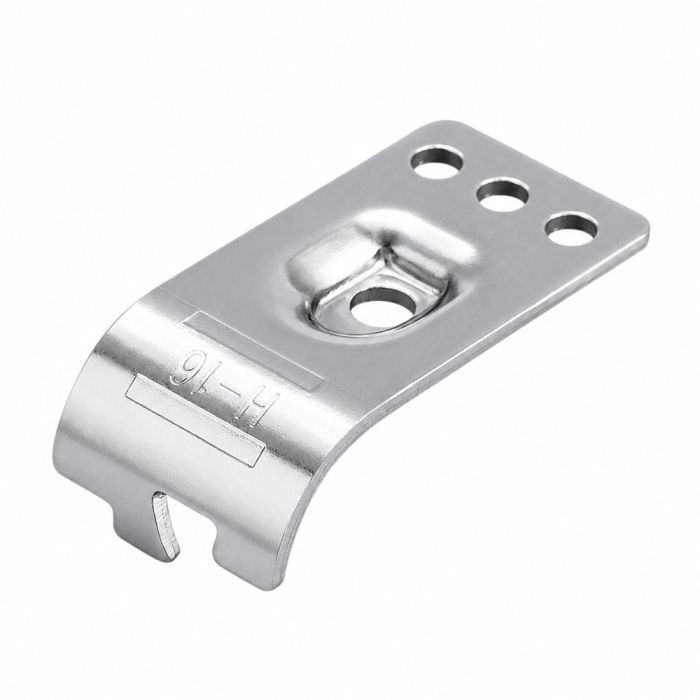

The H-16NP is a chrome plated single joint with antistatic properties (ESD) used to assemble the HJ-15NP joint set. This piece can be used to connect a pipe with a surface.
Technical Informations:
This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes.
ATTENTION
Make sure to choose the proper hardware to use with this part, since it is not used with the regular M6-25B bolt. The H-16NP must be used with an H-15NP upper clamp joint, an M6-12BWZ bolt and an M6-NWZ nut.
Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: H-16
Want to reuse parts of your old system?
The H-16NP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 300 units = 1 box).
Box Quantity | 300 |
---|---|
Length | 2 5/8 in (67 mm) |
Height | 3/4 in (19 mm) |
Width | 1 5/16 in (33 mm) |
Weight | 0.101 lb (0.046 kg) |
Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
Non Compatible Brand | Fastube, Trilogiq (28.6 mm) |
Primary Material | Hot rolled steel (SPHC) with chrome plating |
Temperature Resistance | -148°F to 572°F (-100°C to 300°C) |
Electric Conductivity (ESD) | Yes |
Manufacturing Technique | Stamping and deburring |
