SKU
H-16

Lower clamp joint

Lower clamp joint steel black
CDN$1.10
Stocks
Farnham: 13628
Los Angeles: 2558
Lawrenceville: 3106
  • Connector used to assemble the HJ-15 joint set
  • Compatible with 28 mm pipes
  • 300 units per box (please order individually)

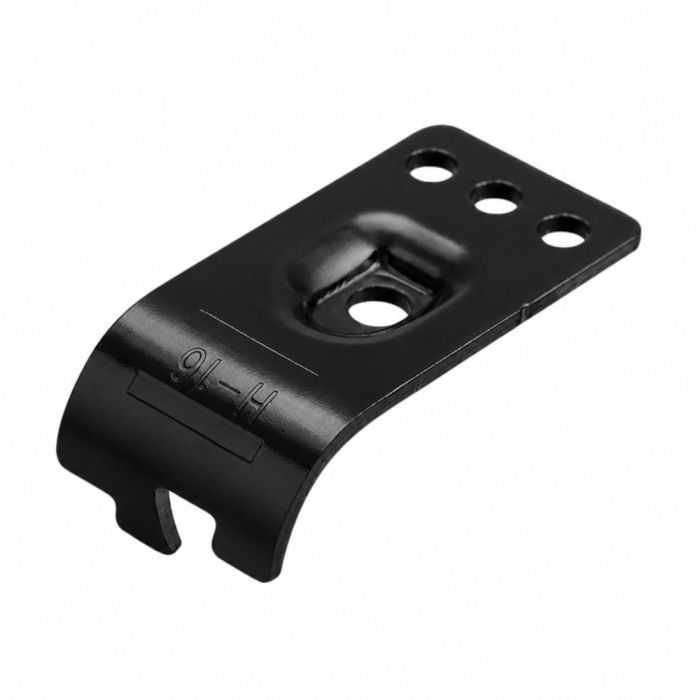

The H-16 is a black metal single joint used to assemble the HJ-15 joint set. This piece can be used to connect a pipe with a surface.

Technical Informations:
This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes.

ATTENTION
Make sure to choose the proper hardware to use with this part, since it is not used with the regular M6-25B bolt. The H-16 must be used with an H-15 upper clamp joint and an M6-12B bolt.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: H-15NP

Want to reuse parts of your old system?
The H-16 Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 300 units = 1 box).

More Information
Units per box (sold separately)300 units per box
Length inches2 5/8 in (67 mm)
Height inches3/4 in (19 mm)
Width inches1 5/16 in (33 mm)
Depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5mm)
Unit weight pounds0.101 lbs (0.046 kg)
Box dimensions inches11 X 9 X 5 in (280mm X 225mm X 130mm)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Noncompatible joint systemsFastube, Trilogiq (28.6 mm)
Noncompatible joint systemsTrilogiq, Fastube
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
Noncompatible pipe systemsTrilogiq (28.6 mm)
Frequency of useModerate
ReusableYes
Electric conductivity (ESD)No
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishGlossy
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentBlack cathodic electrodeposition (Ecoating)
Manufacturing techniqueStamping and deburring
Striations for grip2 striation grip lines
Positioning guideNone
Additional reinforcement holeNone
