Label holder 2'' X 4''
- Ideal for elevated strucutres that require clear visibility
- Rigid and practical
- 90 units per box (please order individually)

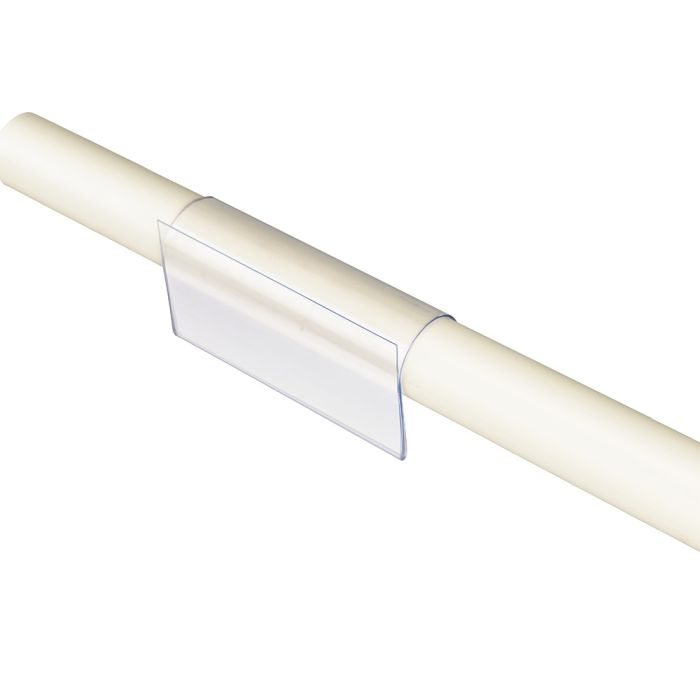

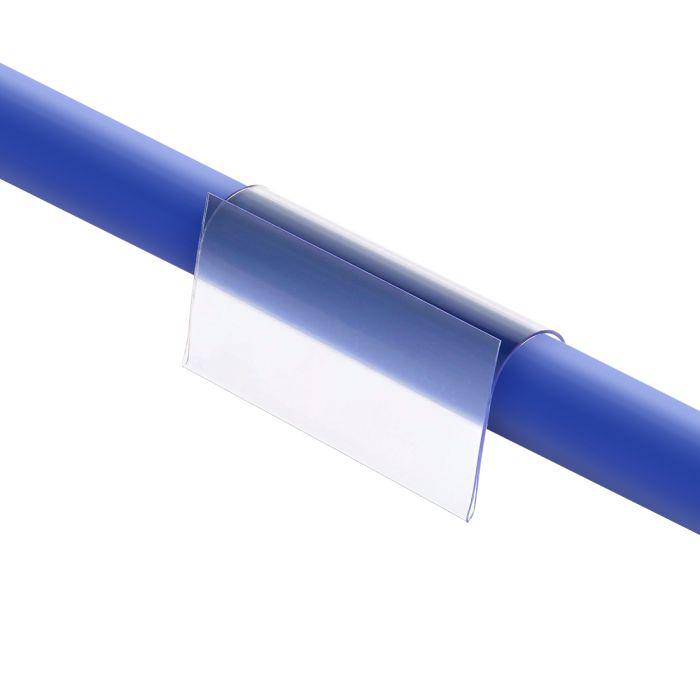

The AL-TAG2 is a hard plastic label holder for 2 by 4-inch signaling labels.
Large enough for elevated structures that need visible signs and at close range, the sign is large enough to contain lots of useful of information.
You can download a print template right here to create the perfect size labels for the AL-TAG2.
Installation Steps:
See the installation steps tab to view how to assemble the AL-TAG2.
Want to reuse parts of your old system?
The AL-TAG2 is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All AL-TAG2 are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AL-TAG2 you wish to receive (example; 90 units = 1 box)
Units per box (sold separately) | 90 |
---|---|
Height inches | 2 1/4 in (57mm) |
Width inches | 4 in (102mm) |
Depth inches | 1 in (25mm) |
Unit weight pounds | 0.086 lbs (0.039 kg) |
Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
Recyclable | Yes |
Compatible pipe systems | Flexpipe, Creform, Fastube |
Noncompatible pipe systems | Trilogiq |
Reusable | Yes |
Electric conductivity (ESD) | Non |
Material | Polyethylene (PE) |
Finish | Matte |
System operational temperature | -58°F à 185°F (-50°C à 85°C) |
Manufacturing technique | injection molding |

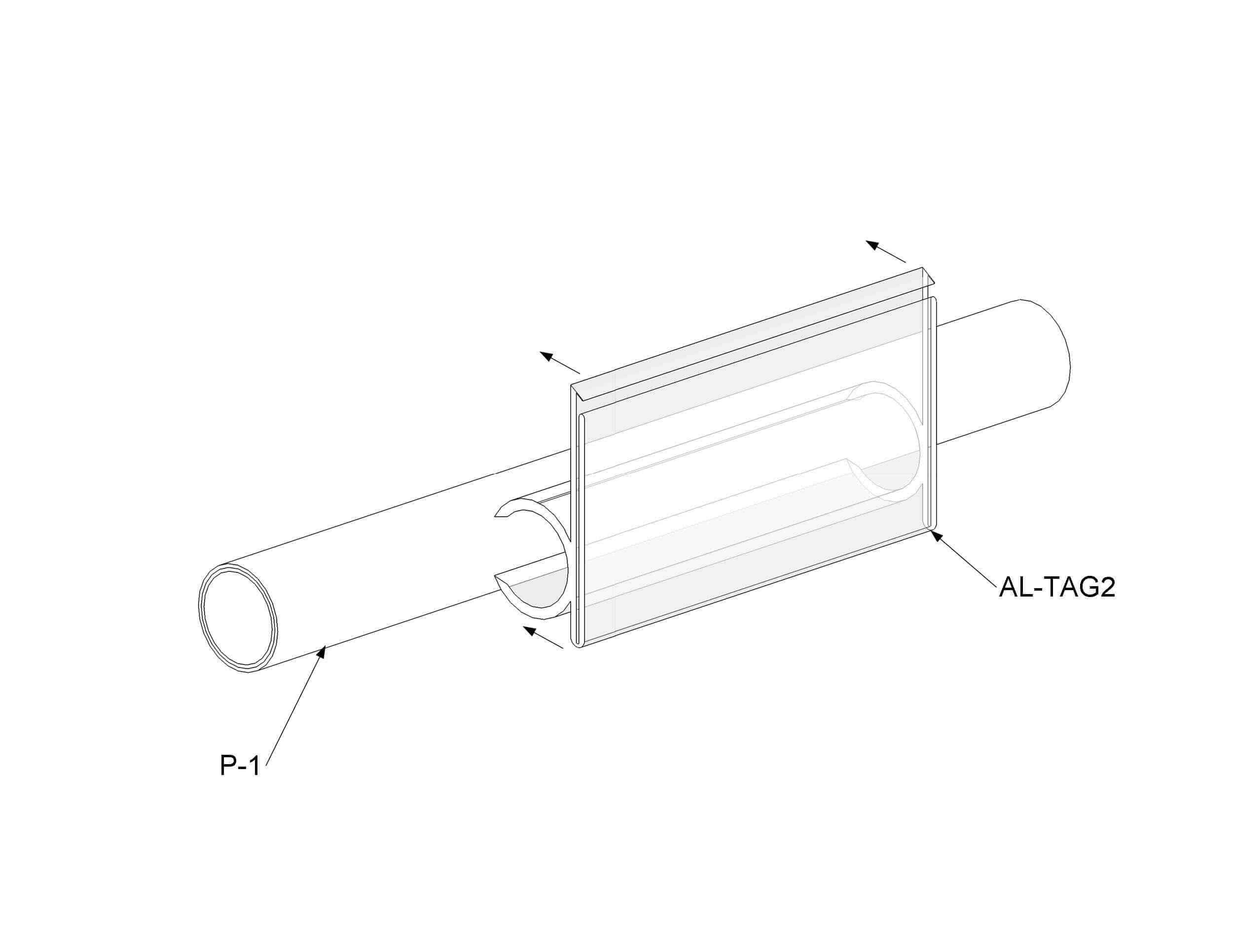

- Ensure you have the following parts:
- 1x AL-TAG2
- 1x 28mm pipe of your choice
- Press-fit an AL-TAG2 on the P1 pipe until it covers the pipe.
