SKU
AL-TAG1

Label holder 1'' X 8''

Label holder 1X8 plastic clear
USD$1.55
Stocks
Farnham: 3589
Los Angeles: 2313
Lawrenceville: 3713
  • Easy to install vertically or horizontally
  • Practical and sturdy
  • 45 units per box (please order individually)

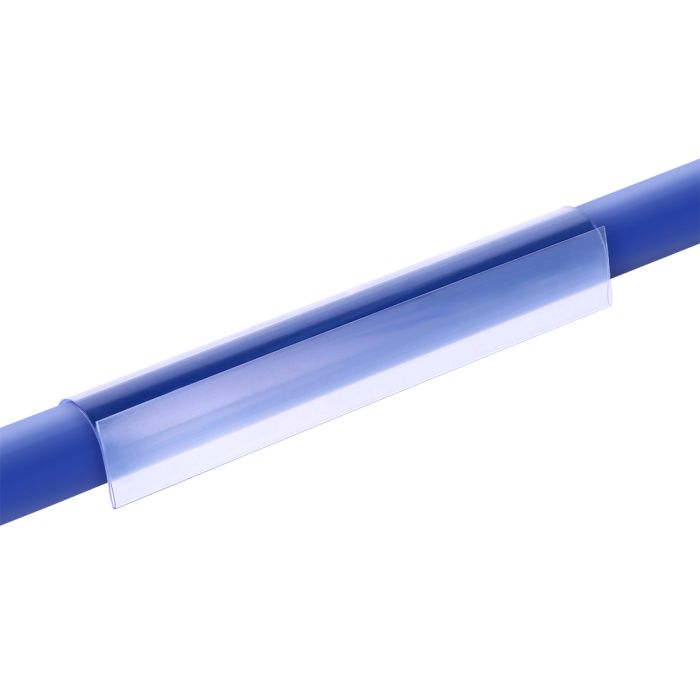

The AL-TAG1 is a hard plastic label holder for 1 by 8-inch signaling labels.

We use this holder at Flexpipe to show information on structures about their function, what parts should go on a shelf or a rack, and for all sorts of structures such as supermarkets, flowracks, carts, and racks.

You can also use it to color code structures.The applications are endless.

The AL-TAG1 is easy to cut with an Exacto knife if you need to make it smaller or if you want to make two 1 by 4-inch tags.

You can download a print template right here to create the perfect size labels for the AL-TAG1.

Installation Steps:

See the installation steps tab to view how to assemble the AL-TAG1.

Want to reuse parts of your old system?
The AL-TAG1 is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All AL-TAG1 are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AP-HINGE you wish to receive (example; 45 units = 1 box)



More Information
Units per box (sold separately)45
Height inches1 1/8 in (29mm)
Width inches8 in (203mm)
Depth inches1 1/8 in (29mm)
Unit weight pounds0.062 lbs (0.028 kg)
Box dimensions inches11 X 9 X 5 in (279mm X 229mm X 127mm)
RecyclableYes
Compatible pipe systemsFlexpipe, Creform, Fastube
Noncompatible pipe systemsTrilogiq
ReusableYes
Electric conductivity (ESD)Non
MaterialPolyethylene (PE)
FinishMatte
System operational temperature-58°F à 185°F (-50°C à 85°C)
Manufacturing techniqueinjection molding
  1. Ensure you have the following parts:
    • 1x AL-TAG1
    • 1x 28mm pipe of your choice
  2. Press-fit an AL-TAG1 on the P1 pipe until it covers the pipe.
