SKU
HJ-DS

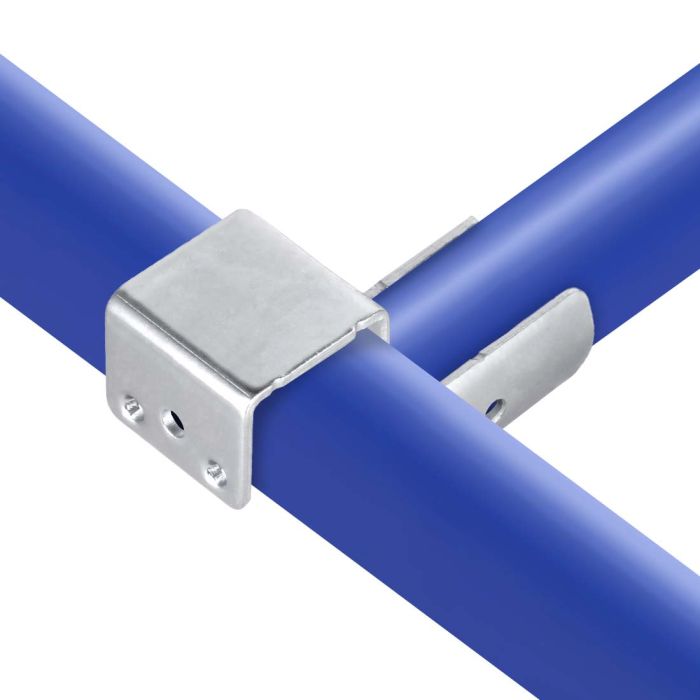

Pipe Mount Drop Stop - Zinc
-
Nuts and bolts are included, but packaged separately
-
Assembly is required
Also Available:
CDN$2.61
Farnham:
4655
4655 units in stock
Location details
Products You May Also Need
The HJ-DS is an all-in-one metal connector used to build sliding pipes. This part works well with the HJ-MS to create sliding pipes for the transportation of boxes, bins, and even surfaces. When assembling a sliding pipe, this part is usually positioned at the end of the slope or at the lowest point of the slope. Unlike the HJ-MS, this connector is a stopper to retain your container in the structure. This is mainly why we use the HJ-DS at the end of the slope.
Like the HJ-MS, this part can be used with an HJ-12 to build a movable arm with a hook at the end of it. This application is sometimes used as a security feature on structures. You just need to secure two F-A858 screws to connect this part.
The HJ-DS was previously considered an all-in-one black joint set of the HJ category. Since then, the HJ-DS became an accessory, and we changed its black coating to the ESD nickel-plated treatment. So now you can use it to create sliding pipes on antistatic structures.
Like the HJ-MS, this part can be used with an HJ-12 to build a movable arm with a hook at the end of it. This application is sometimes used as a security feature on structures. You just need to secure two F-A858 screws to connect this part.
The HJ-DS was previously considered an all-in-one black joint set of the HJ category. Since then, the HJ-DS became an accessory, and we changed its black coating to the ESD nickel-plated treatment. So now you can use it to create sliding pipes on antistatic structures.
Please note that nuts and bolts are included, but packaged separately. Assembly is required.
| Box Quantity | 60 |
|---|---|
| Length | 3 1/4 in (83 mm) |
| Height | 2 1/2 in (64 mm) |
| Width | 1 5/16 in (33 mm) |
| Material Thickness | 1/8 in (2.5mm) |
| Weight | 0.319 lb (0.145 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Compatible brand | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Non Compatible Brand | Trilogiq (28.6 mm) |
| Primary Material | Galvanised Hot rolled steel (SPHC) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Electric Conductivity (ESD) | Yes |
| Manufacturing Technique | Stamping and deburring |
1- Make sure you have the following parts:
1 HJ-DS
2 F-A858
2 tubes 28mm de votre choix
1 Drill
2- Take the P1 pipe and insert it inside the HJ-DS.
3-Hang the HJ-DS on the P2 pipe.
4. Take two F-A858 and fix them in the corresponding openings.
