SKU
HJ-MS
Pipe mount start
Pipe mount start steel zinc
CDN$2.32
Stocks
Farnham: 2248
Los Angeles: 2159
Lawrenceville: 2910

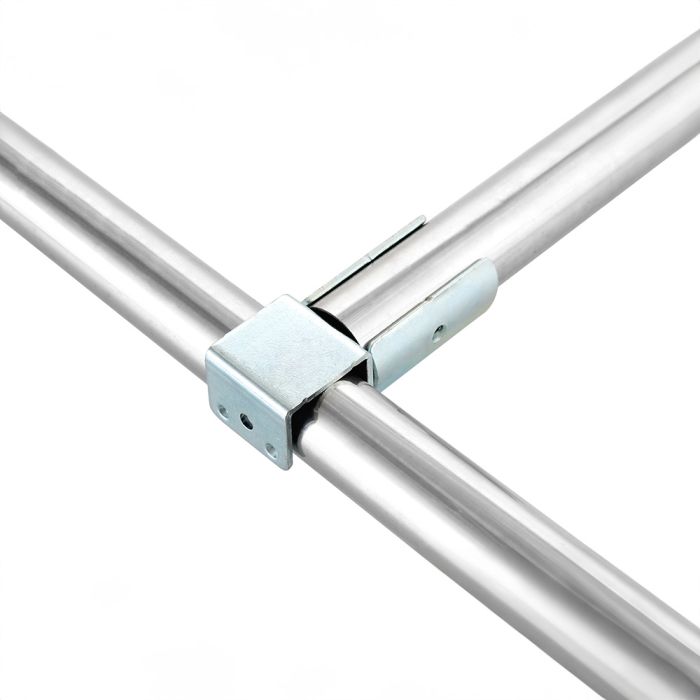

The HJ-MS is a metal single connector used to create sliding pipes. This accessory works best with the HJ-DS, and together they make it possible to create angled pipes that let you slide all sorts of bins, boxes, and surfaces. When building a sliding pipe, this part is usually positioned at the beginning of the slope or at the highest point of the slope. The sliding pipe is a technique frequently used if you don't want to use conveyors or if you want to build a particular type of extension for a conveyor track.
The HJ-MS is also used to make the movable hook. Used with an HJ-12, you can assemble a moving arm with a hook at the end. This accessory can be secured quickly with two F-A85/8 screws.
The HJ-MS is so named because it was previously considered an all-in-one black joint set. Since it was named, the HJ-MS has become more of an accessory, and we have changed its black coating to the antistatic nickel-plated treatment. So now you can use this connector to make sliding pipes on ESD structures.
The HJ-MS is also used to make the movable hook. Used with an HJ-12, you can assemble a moving arm with a hook at the end. This accessory can be secured quickly with two F-A85/8 screws.
The HJ-MS is so named because it was previously considered an all-in-one black joint set. Since it was named, the HJ-MS has become more of an accessory, and we have changed its black coating to the antistatic nickel-plated treatment. So now you can use this connector to make sliding pipes on ESD structures.
| Units per box (sold separately) | 72 |
|---|---|
| Height inches | 1 1/4 in (32mm) |
| Width inches | 3 1/4 in (83mm) |
| Depth inches | 1 5/16 in (33mm) |
| Steel thickness inches | 1/8 in (2.5mm) |
| Unit weight pounds | 0.282 lbs (0.128 kg) |
| Box dimensions inches | 11 X 9 X 5 in (280mm X 225mm X 130mm) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq |
| Frequency of use | Very high |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Shiny |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |

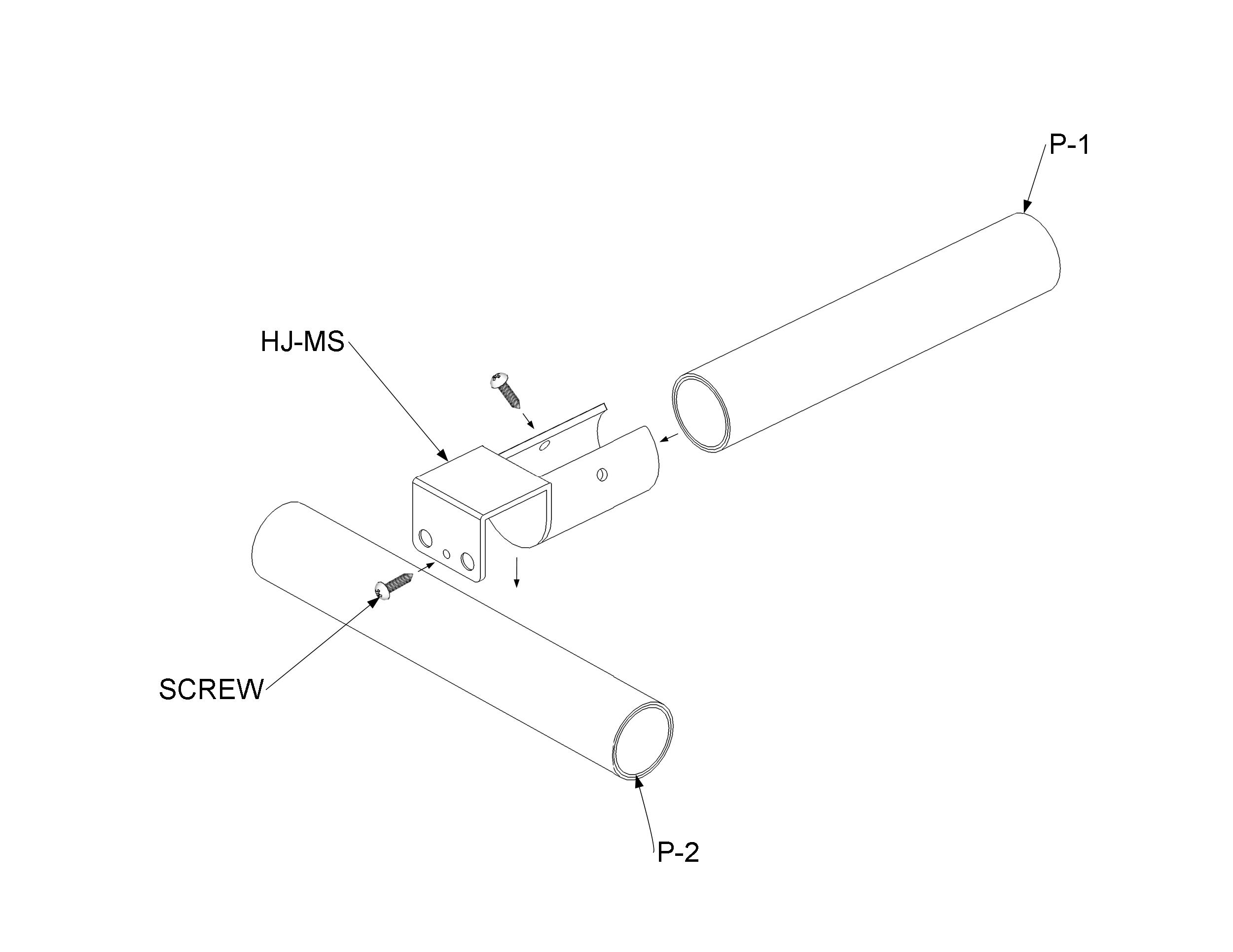

1- Make sure you have the following parts:
1 HJ-MS
2 F-A85/8
2 28mm pipes of your choice
1 Drill
2- Take the P1 pipe and insert it inside the HJ-MS
3-Hang the HJ-MS on the P2 pipe.
4. Take two F-A85/8 and fix them in the corresponding openings.
1 HJ-MS
2 F-A85/8
2 28mm pipes of your choice
1 Drill
2- Take the P1 pipe and insert it inside the HJ-MS
3-Hang the HJ-MS on the P2 pipe.
4. Take two F-A85/8 and fix them in the corresponding openings.
