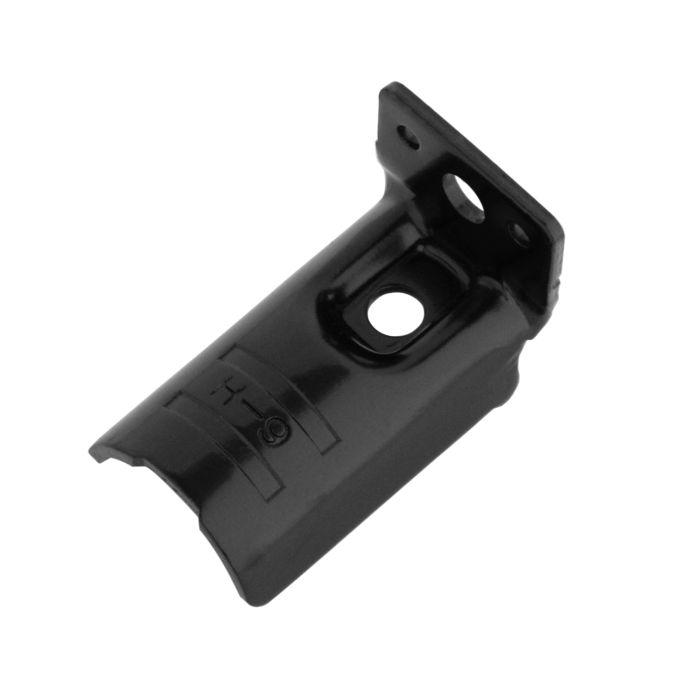

Flat anchor joint
- Connector used to assemble the HJ-8 / HJ-9 joint sets
- Compatible with 28 mm pipes
- 245 units per box (please order individually)
This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes. It also includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: H-9NP
Want to reuse parts of your old system?
The H-9 Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 245 units = 1 box).
|Units per box (sold separately)||245 units per box|
|Length inches||2 3/16 in (56 mm)|
|Height inches||3/4 in (19 mm)|
|Width inches||1 5/16 in (33 mm)|
|Depth inches||1 5/16 in (33mm)|
|Steel thickness inches||1/8 in (2.5mm)|
|Unit weight pounds||0.136 lbs (0.062 kg)|
|Box dimensions inches||11 X 9 X 5 in (280mm X 225mm X 130mm)|
|Compatible joint systems||Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)|
|Noncompatible joint systems||Fastube, Trilogiq (28.6 mm)|
|Noncompatible joint systems||Trilogiq, Fastube|
|Compatible pipe systems||Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)|
|Noncompatible pipe systems||Trilogiq (28.6 mm)|
|Frequency of use||Moderate|
|Electric conductivity (ESD)||No|
|Material||Hot rolled steel (SPHC)|
|Steel hardness (HRB)||68-75 HRB|
|System operational temperature||-148°F to 572°F (-100°C to 300°C)|
|Steel treatment||Black cathodic electrodeposition (Ecoating)|
|Manufacturing technique||Stamping and deburring|
|Striations for grip||2 striation grip lines|
|Positioning guide||2 positioning guide lines|
|Additional reinforcement hole||None|
