Embed pipe support
- Improve support capacity
- Adds rigidity to surfaces
- Galvanized steel
The AI-CENTER is a metal anchor joint that improves the supporting capacity of a surface.
We use this product with the AI-CORNER and as an alternative or a complement to the AI-SUPPORT to create more contact points with an embedded working surface.
The AI-CENTER's role is to be a perfect anchor for large surfaces that would have the tendency to bend under heavy loads, it is a stronger solution to the AI-SUPPORT.
Unlike the HJ-MS and HJ-DS, the AI-CENTER is not designed to hold containers like boxes and bins because of its upper, rounded part. This product is intended to support surfaces.
Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK
Installation Steps:
See the installation steps tab to view how to install the AI-CENTER
Want to reuse parts of your old system?
The AI-CENTER is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
| Units per box (sold separately) | 60 |
|---|---|
| Height inches | 2 1/16 po (52mm) |
| Width inches | 3 1/4 po (59mm) |
| Depth inches | 1 3/16 po (30mm) |
| Unit weight pounds | 0.290 lbs (0.132 kg) |
| Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Glossy |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |
- Ensure you have the following parts:
- 1x AI-CENTER
- 2x F-A85/8
- 4x F-S81/2
- 2x 28mm pipes of your choice
- 1x Drill w/ #2 square head

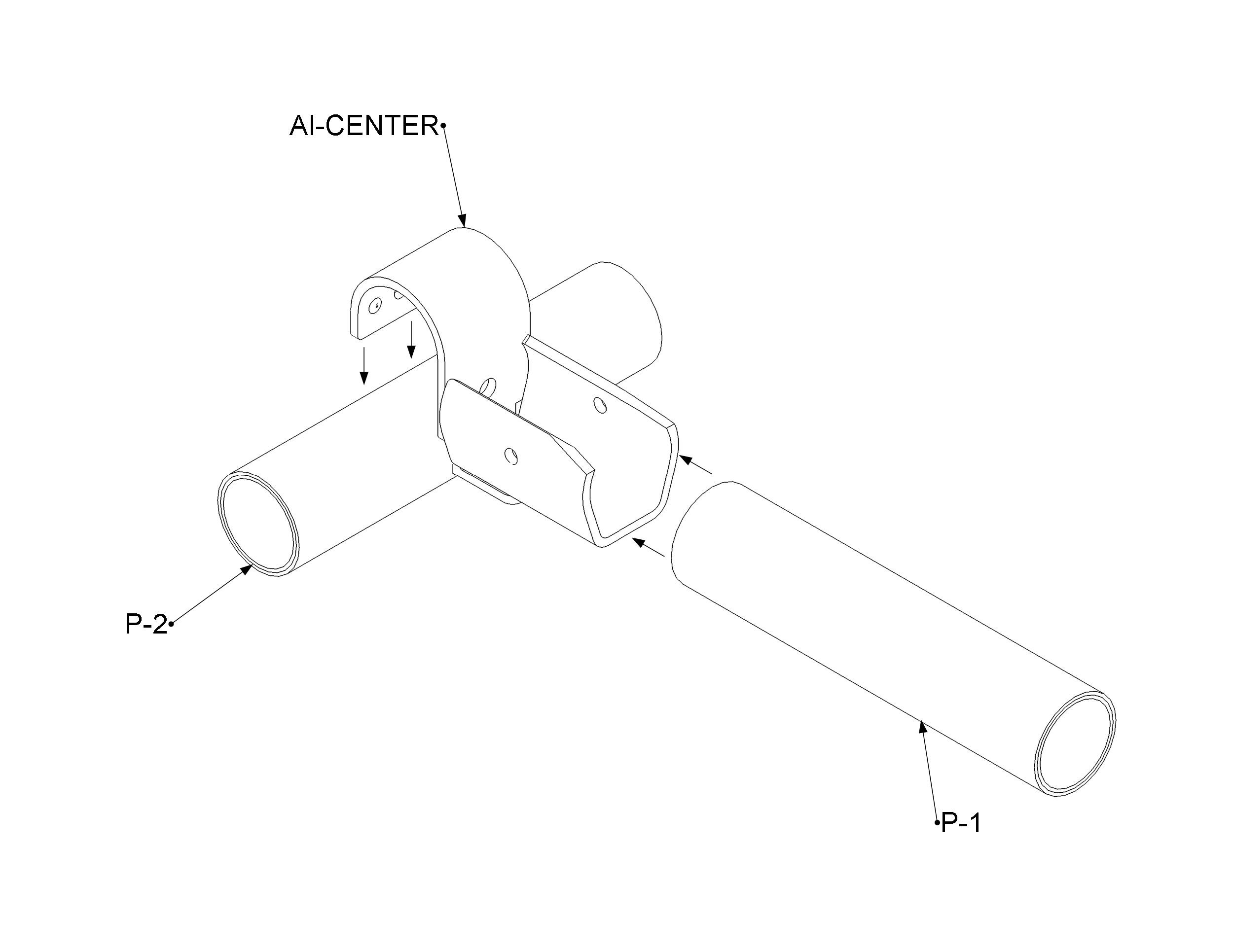

- Slide the P1 pipe inside of AI-CENTER.
- Press fit the AI-CENTER on P2 pipe.
- Fix two F-A85/8 screws into corresponding openings.
