Embed pipe support
- Improve support capacity
- Adds rigidity to surfaces
- Galvanized steel

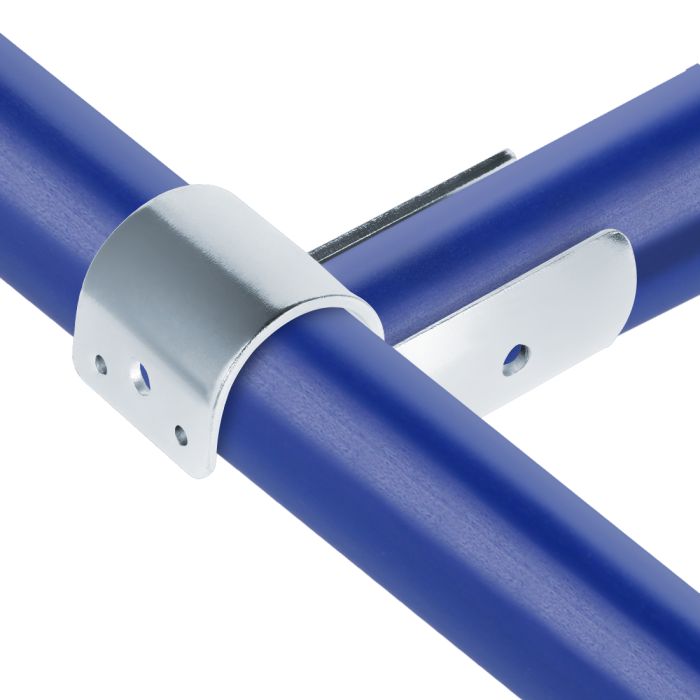

The AI-CENTER is a metal anchor joint that improves the supporting capacity of a surface.
We use this product with the AI-CORNER and as an alternative or a complement to the AI-SUPPORT to create more contact points with an embedded working surface.
The AI-CENTER's role is to be a perfect anchor for large surfaces that would have the tendency to bend under heavy loads, it is a stronger solution to the AI-SUPPORT.
Unlike the HJ-MS and HJ-DS, the AI-CENTER is not designed to hold containers like boxes and bins because of its upper, rounded part. This product is intended to support surfaces.
Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK
Installation Steps:
See the installation steps tab to view how to install the AI-CENTER
Want to reuse parts of your old system?
The AI-CENTER is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
| Box Quantity | 60 |
|---|---|
| Length | 1 3/16 in (30 mm) |
| Height | 2 1/16 in (52 mm) |
| Width | 3 1/4 in (59 mm) |
| Weight | 0.29 lb (0.132 kg) |
| Box Dimensions | Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm) |
| Compatible brand | Flexpipe, Creform, Fastube |
| Non Compatible Brand | Trilogiq |
| Primary Material | Galvanised Hot rolled steel (SPHC) |
| Temperature Resistance | -58°F to 185°F (-50°C to 85°C) |
| Electric Conductivity (ESD) | Yes |
- Ensure you have the following parts:
- 1x AI-CENTER
- 2x F-A85/8
- 4x F-S81/2
- 2x 28mm pipes of your choice
- 1x Drill w/ #2 square head
- Slide the P1 pipe inside of AI-CENTER.
- Press fit the AI-CENTER on P2 pipe.
- Fix two F-A85/8 screws into corresponding openings.
