HJ-2

Corner Joint Set Steel

Corner 90° joint set black ecoated steel
CDN$2.95

In stock

  • Compatible with 28 mm pipes
  • Nuts and bolts are included, but packaged separately
  • Assembly required

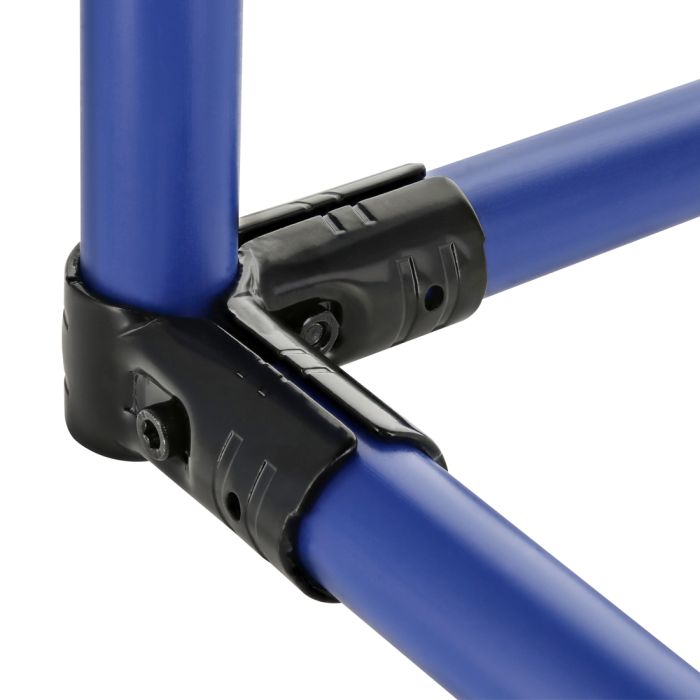

The HJ-2 is a black metal joint set that allows you to create a three-pipe intersection or a corner. This joint set will probably be used for most of your structure's external corners and structural separations on two perpendicular sides. Other applications of the HJ-2 include the creation of more complex and ergonomic handles, the creation of V-shape racking support or a V-shape roof. It is often associated with the AI-CORNER accessory when positioning a surface on external sides.

To assemble an HJ-2 you need to combine an H-2 and an H-3 together with two M6-25B bolts and two M6-N nuts.

Technical Information:
This joint set is designed with 10 striations for a better grip on the plastic coating of the 28 mm pipes. It also includes 8 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A858, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Installation Steps
See the installation steps tab to view how to assemble this connector.

Antistatic Version (ESD):
An electric conductivity version if offered if you wish to build antistatic structures: HJ-2NP

Want to reuse parts of your old system?
The HJ-2 Flexpipe joint set is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.


Please note that nuts and bolts are included, but packaged separately. Assembly is required.

More Information
Length2 9/16 in (65 mm) on each side
Height1 5/16 in (33 mm)
Width1 5/16 in (33 mm)
Material Thickness1/8 in (2.5 mm)
Weight0.510 lb (0.232 kg)
Compatible brandCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Non Compatible BrandFastube, Trilogiq (28.6 mm)
Primary MaterialHot rolled steel (SPHC) with black cathodic electrodeposition (Ecoating)
Temperature Resistance-148°F to 572°F (-100°C to 300°C)
Electric Conductivity (ESD)No
Manufacturing TechniqueStamping and deburring
  1. Ensure you have the following parts:
  2. Fix the H-3 connector to the desired location on the first pipe.
  3. Put the H-2 connector in the inner corner of the HJ-2.
  4. Loosely tighten the M6-25B and the M6-N in the corresponding openings of the HJ-2.
  5. Insert the second and third pipes within the openings of the HJ-2, and between the first and the second positioning guidelines.
  6. Tighten completely the M6-25B and the M6-N together until the HJ-2 is firmly attached to the pipes.
