8ft Steel Flanged roller track (ESD)
- Electric conductivity (ESD)
- 96 in (2438mm) length
- Wheel diameter 1 1/4 in with an 1/8 in height flange
- Take advantage of our cutting service

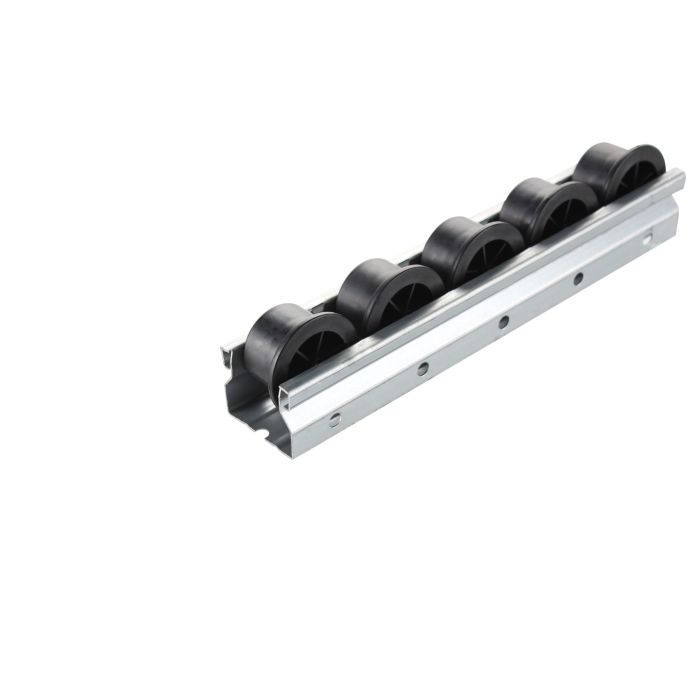

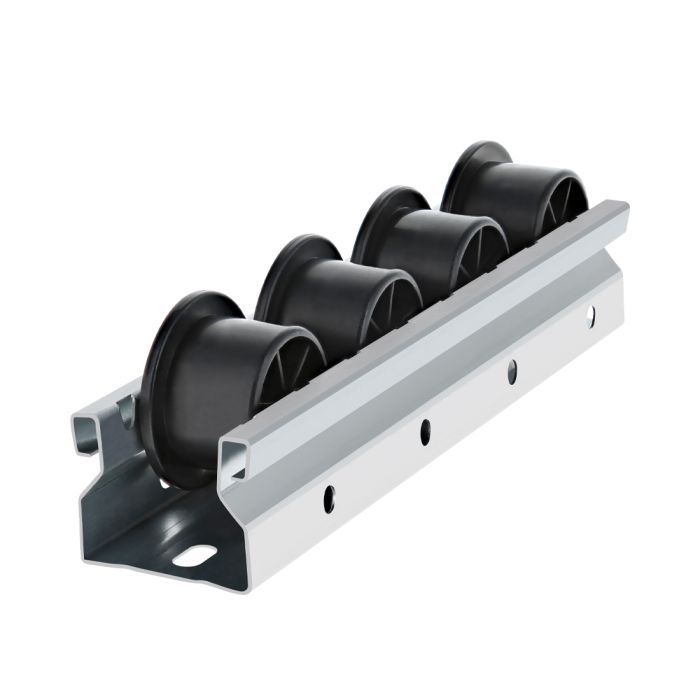

The R40-RT96FL is an ESD metal conveyor frame with black plastic wheels and flange.
The flange allows for separation when you need to save space in a confined environment. It can be easily adjusted to all box sizes.
To minimize shipping costs and maximize maneuverability, this item is only available in 8-foot (2438mm) long.
The roller track can be installed with multiple accessories to create different slopes and configurations of flow racks. All Flexpipe conveyor R40 accessories are engineered to perfectly fit the R40-RT96FL.
The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.
Learn more on different accessories configuration on the How to build modular flow racks page.
Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.
Don't know where to begin? Our flow rack starter kit could be really helpful!
Our cutting service is available for this product by simply selecting the according option on this page.
| Units per box (sold separately) | 8 |
|---|---|
| Unit weight pounds | 5.98 lb (2.72 kg) |
| Box dimensions inches | 96 X 5 X 3 1/2 in (2438mm X 127mm X 89mm) |
| Wheels diameter inches | 1 1/4 in flange 13/64 in (32 mm flange 5mm) |
| Wheels width millimeter | 7/8 in (22 mm) |
| Total height inches | 1 15/16 in (48.5 mm) |
| Electric conductivity (ESD) | Yes |
| Steel hardness (HRB) | 0.65 |
| Finish | Mat |
| System operational temperature | -4°F to 104°F (-20°C to 40°C) |
| Steel treatment | Galvanized |
| Manufacturing technique | Pressed and deburring |
| Additional reinforcement hole | No |
| Load capacity per meter pounds | 507 lb (230 kg) |
| Load capacity per wheels pounds | 20 lb (9 kg) |
| Rail material | Cold rolled steel (SPCC) |
| Rail color | Gray |
| Wheels material | Polyethylene (PE) |
| Wheels finish | Glossy |
| Wheels color | Black |
