SKU
H-90NP

Round joint

Round joint steel cr
CDN$1.22
In stock
Only 1041 left
  • Connector used to assemble the HJ-90NP joint set
  • Compatible with 28 mm pipes
  • 100 units per box (please order individually)
  • Electric conductivity (ESD) joint

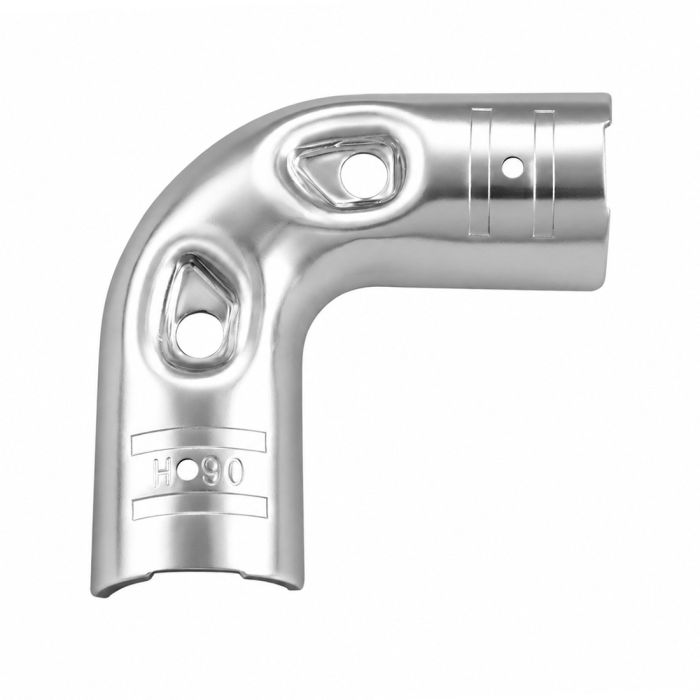

The H-90NP is a chrome plated single joint with antistatic properties (ESD) used to assemble the HJ-90NP joint set. This piece is commonly used to create a 90-degree angle. Combined with a second H-90NP, it becomes very useful for creating ergonomic cart handles.

Technical Informations:
This connector is designed with 4 striations for a better on the plastic coating of the 28 mm pipes. It also includes 2 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.

Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: H-90

Want to reuse parts of your old system?
The H-90NP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 100 units = 1 box).

More Information
Best SellerNo
Units per box100 units per box
Length inches3 1/8 in (79 mm) on each side
Height inches3/4 in (19 mm)
Width inches1 5/16 in (33 mm)
Depth inches1 5/16 in (33mm)
Steel thickness inches1/8 in (2.5mm)
Unit weight pounds0.224 lbs (0.102 kg)
Box dimensions inches11 X 9 X 5 in (280mm X 225mm X 130mm)
Compatible joint systemsCreform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
None compatible joint systemsFastube, Trilogiq (28.6 mm)
None compatible joint systemsTrilogiq, Fastube
RoHS certificationYes
RecyclableYes
Compatible pipe systemsCreform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)
None compatible pipe systemsTrilogiq (28.6 mm)
Frequency of useHigh
ReusableYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)68-75 HRB
FinishShiny
UV resistanceHigh
System operational temperature-148°F to 572°F (-100°C to 300°C)
Steel treatmentChrome plating
Manufacturing techniqueStamping and deburring
Striations for grip4 striation grip lines
Positioning guide2 positioning guide lines
Additional reinforcement hole2 reinforcement holes
