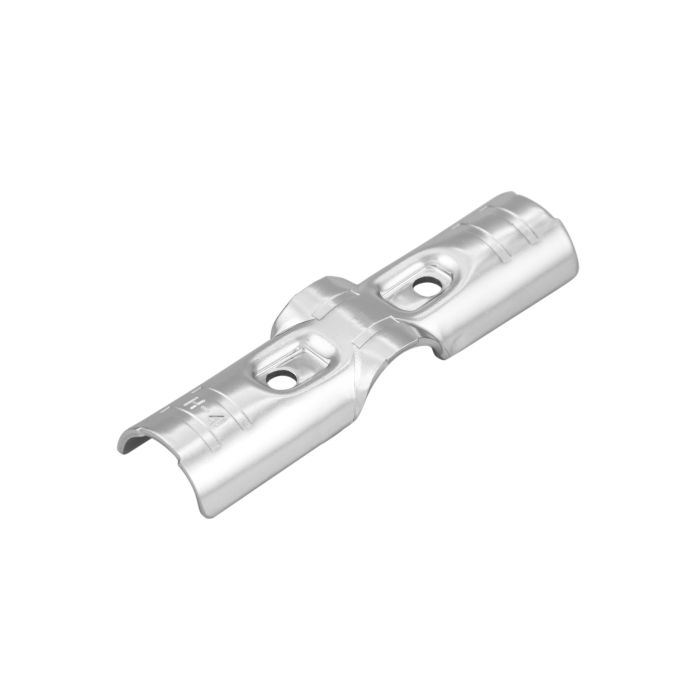

Cross junction joint
- Connector used to assemble the HJ-3NP / HJ-4NP joint sets
- Compatible with 28 mm pipes
- 150 units per box (please order individually)
- Electric conductivity (ESD) joint
We suggest you to always have a box of H-4 or H-4NP in inventory, since it is the connector that you will used frequently in the configuration of your structures. If you would like to keep an inventory of the Flexpipe parts, this video could help you konw the percentage of each parts we suggest to order according to your needs.
This connector is designed with 6 striations for a better on the plastic coating of the 28 mm pipes. It also includes 3 additional pre-drilled reinforcement holes to ensure extra strength to your structure. By adding a self-drilling screw F-A85/8, you will solidify the connector joints positioned on a corner where there is a higher risk of impact.
Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: H-4
Want to reuse parts of your old system?
The H-4NP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 150 units = 1 box).
|Units per box (sold separately)||150 units per box|
|Length inches||5 1/8 in (130 mm)|
|Height inches||3/4 in (19 mm)|
|Width inches||1 5/16 in (33 mm)|
|Depth inches||1 5/16 in (33mm)|
|Steel thickness inches||1/8 in (2.5mm)|
|Unit weight pounds||0.233 lbs (0.106 kg)|
|Box dimensions inches||11 X 9 X 5 in (280mm X 225mm X 130mm)|
|Compatible joint systems||Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)|
|Noncompatible joint systems||Fastube, Trilogiq (28.6 mm)|
|Noncompatible joint systems||Trilogiq, Fastube|
|Compatible pipe systems||Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm)|
|Noncompatible pipe systems||Trilogiq (28.6 mm)|
|Frequency of use||High|
|Electric conductivity (ESD)||Yes|
|Material||Hot rolled steel (SPHC)|
|Steel hardness (HRB)||68-75 HRB|
|System operational temperature||-148°F to 572°F (-100°C to 300°C)|
|Steel treatment||Chrome plating|
|Manufacturing technique||Stamping and deburring|
|Striations for grip||6 striation grip lines|
|Positioning guide||4 positioning guide lines|
|Additional reinforcement hole||3 reinforcement holes|
