Flat Clamp Hinge Set Zinc

Flat Clamp Hinge Set Steel Cr

In stock

  • 210 units per box (please order individually)
  • Compatible with 28 mm pipes
  • Assembly required

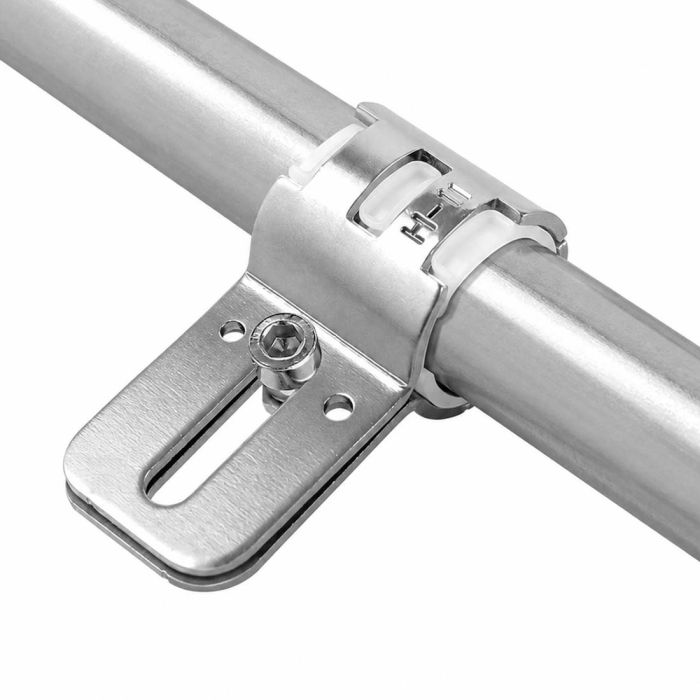

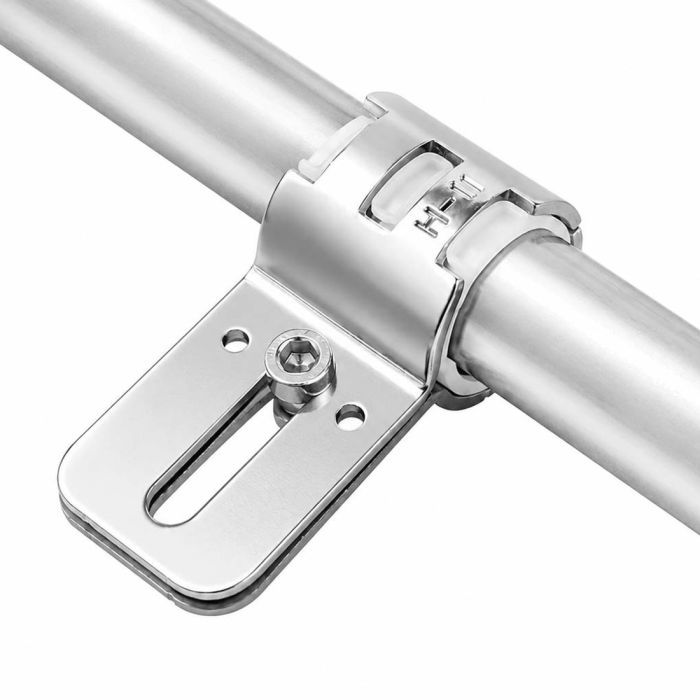

The HJ-11NP Flat Clamp Hinge joint set is used to create hinges without having to build a whole frame.

To create a robust hinge set, simply combine two H-11NP joints with either the AP-HINGE or AP-HINGE-AL for a more durable built. This dynamic combination ensures smooth rotation without requiring lubrification.

The HJ-11NP features a convenient mounting slot, allowing easy attachment to sufaces for a secure and stable installation. Depending on the thickness of the surface you wish to attach with the HJ-11NP, you can use the M6-12BWZ and M-6N.

It's best to have a few of these parts on standby should you intend to fabricate a gate, door or indicator flag (to indicate bin status).

The HJ-11NP ensures a secure and static-free environment, making it perfect for applications where preventing electrostatic damage is crucial. For those seeking a version without antistatic properties, a black version of this item is offered : HJ-11.

All of our joints are sold individually.

To make it easier for you, we have indicated the quantity included in a box should you want to order a complete box (210 units per box). However, our order system only considers single units. Please enter the total quantity of joints you wish to order.

Please note that nuts and bolts are included, but packaged separately. Assembly is required.

More Information
Box Quantity210
Length3 5/16 in (84.14 mm)
Height1 7/16 in (36.51 mm)
Width1 7/16 in (36.51 mm)
Weight0.132 lb (0.06 kg)
Primary MaterialHot rolled steel (SPHC) with chrome plating
Secondary MaterialPolyethylene (PE)
Temperature Resistance-58°F to 185°F (-50°C to 85°C)
Electric Conductivity (ESD)Yes (10– 10^3)
Manufacturing TechniqueStamping and deburring
