SKU
AP-HINGE

Plastic Hinge Sleeve for Pipe Joints

Hinge bracket plastic white
CDN$0.37
Stocks
Farnham: 980
  • For doors, drop-leaf tables and adjustable shelving
  • Used to create rotation and sliding along the pipe
  • 150 units per box (please order individually)

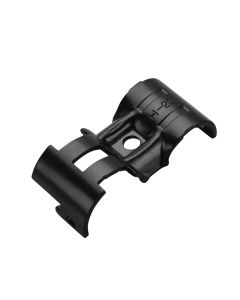

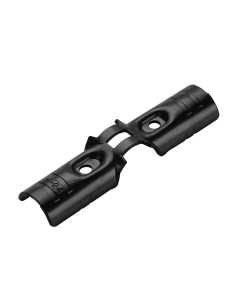

The AP-HINGE is a round plastic bracket made to be pressed-fit around the 28mm pipes. An accessory to be used with HJ-12, HJ-23, HJ-24 joints sets.

This part is what gives the HJ-joints the ability to rotate up to 360 degrees. The AP-HINGE is commonly used to hinge doors, as well as to build drop-leaf table extensions and sliding mechanisms.

Combine with AO-SHIM to limit the sliding range.

Antistatic (ESD):
Compatible with ESD pipes.

Installation Steps:
See the installation steps tab to view how to assemble the AP-HINGE.

Want to reuse parts of your old system?
The AP-HINGE is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

All AP-HINGES are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AP-HINGE you wish to receive (example; 150 units = 1 box)

More Information
Box Quantity150
Length1 5/16 in (33 mm)
Height1 3/8 in (35 mm)
Width1 5/16 in (33 mm)
Weight0.013 lb (0.243 kg)
Box DimensionsCardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Compatible brandFlexpipe, Creform, Fastube
Non Compatible BrandTrilogiq
Primary MaterialPolyethylene (PE)
Temperature Resistance-58°F to 185°F (-50°C to 85°C)
Electric Conductivity (ESD)No

Please reference HJ-12, HJ-23 and HJ-24 installation steps.
