SKU
FL-COU14-100LBS

14" Drawer Slide Pairs - 100 lb Max

14'' pair drawer slides steel zn
CDN$21.59
Stocks
Farnham: 66
  • Support loads up to 99.2 lbs.
  • For drawers up to 16” wide
  • Light to medium duty applications

The FL-COU14 is an extra-low-profile side-mount full extension drawer slide. Full-extension allows drawers to open the full length of the slide, allowing for greater access

It is popular in office storage while also bringing its smooth and silent motion to box drawers, pipe and joint drawers and any other type of application which may require the use of drawer slides.

Capable to support up to 99.2 pounds per pair, it can be used for drawers up to 16" wide, it is intended for light to medium duty applications.

Combine with FL-COU-U to install to any pipe structure.

Have a look at our HOW TO to learn all about how we use the FL-COU14 here at Flexpipe!

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps:
See the installation steps tab to view how to install the FL-COU14.

Technical Specs:

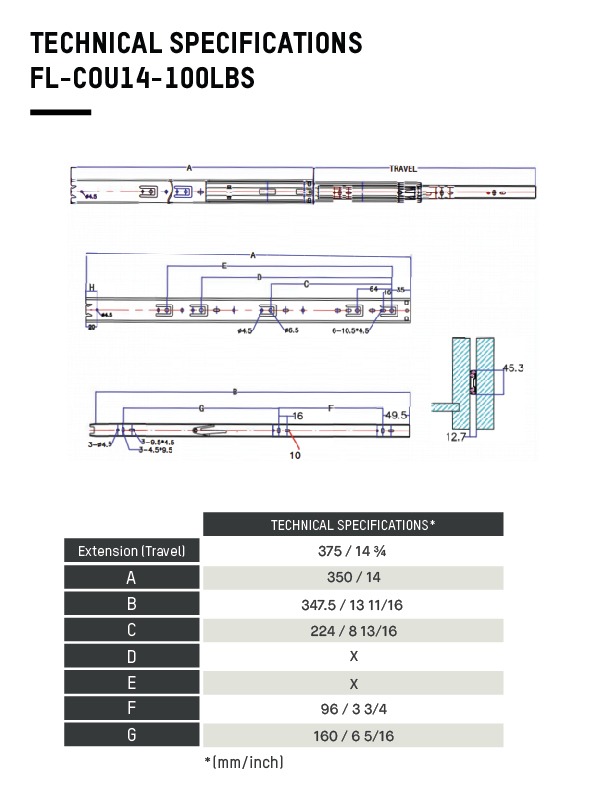

FL-COU14-100LBS tech specs

More Information
Box Quantity10
Length14 in (350 mm)
Weight2.332 lb (1.058 kg)
Box DimensionsCardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Common UsageDrawer
Compatible brandFlexpipe, Creform, Fastube
Non Compatible BrandTrilogiq
Primary MaterialGalvanised Hot rolled steel (SPHC)
Temperature Resistance-4°F to 104°F (-20°C to 40°C)
Electric Conductivity (ESD)Yes
Loading Capacity100 lbs (45 kg)

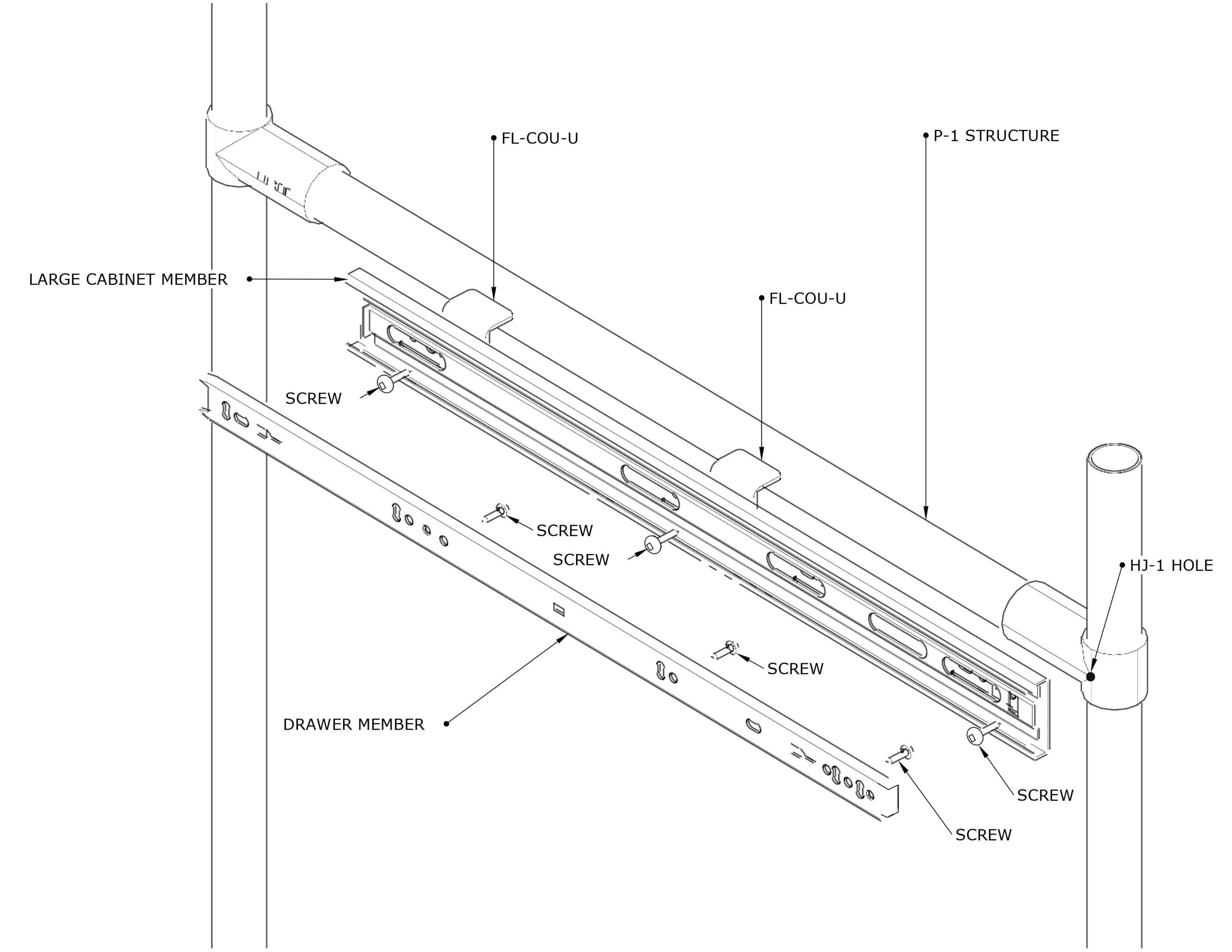

  1. Ensure you have the following parts:
    • 1x FL-COU14 (pair)
    • 4x FL-COU-U
    • 6x F-A858 (for large cabinet members)
    • 6x F-S812 (for hdpe box drawer) or
    • 6x F-A858 and 4x FL-COU-U (for pipe and joint drawer)
    • 3x 28mm pipes of your choice (structure)
    • 1x Drill w/ #2 square head
  2. Separate slide members by pushing the disconnect latch into the drawer member.
  3. Install large cabinet member with F-A858 screws and FL-COU-U to P-1 structure using the 1st hole of the HJ-1 joint set to line up the slide with the front of the structure.
  4. Check that both cabinet members are vertically and horizontally parallel.
    Make necessary adjustments.
  5. Install drawer member through slots to side of box drawer or
    pipe and joint drawer using corresponding screws
  6. Insert drawer member after making sure ball bearing retainers are fully forward. Close drawer completely.

For more info have a look at our videos for:

How to install Hdpe drawers here and How to install pipe and joint drawers here
