4" ESD Swivel Plate Caster with Brake - Kit

Name: 4" ESD Swivel Plate Caster with Brake - Kit
SKU: EW-4PSB-KIT
Price: 34.61 CAD
Availability: InStock

• Antistatic material (ESD)

• Comes with hardware to mount on pipes

• 250 lb (113.4 kg) loading capacity

• 2.5 mph (4.02 km/h) maximum speed

CDN$34.61

In stock

Add to Wish List

Description
Technical Information

The 4" casters are made for carts weighing more than 400 pounds (181.44 kg), larger carts that are greater than 24" wide and 48" long, longer trips that don't exceed 100 feet maximum, and higher frequency trips.

Caster features a swivel plate with lock brake and is equipped with precision ball bearings
Caster is anti-static (ESD), making it ideal for environments where static discharge must be managed or prevented, such as in the electronics industry and medical device manufacturing.
Loading capacity of 250 lb (113.4 kg)
Maximum speed of 2.5 mph (4.02 km/h)

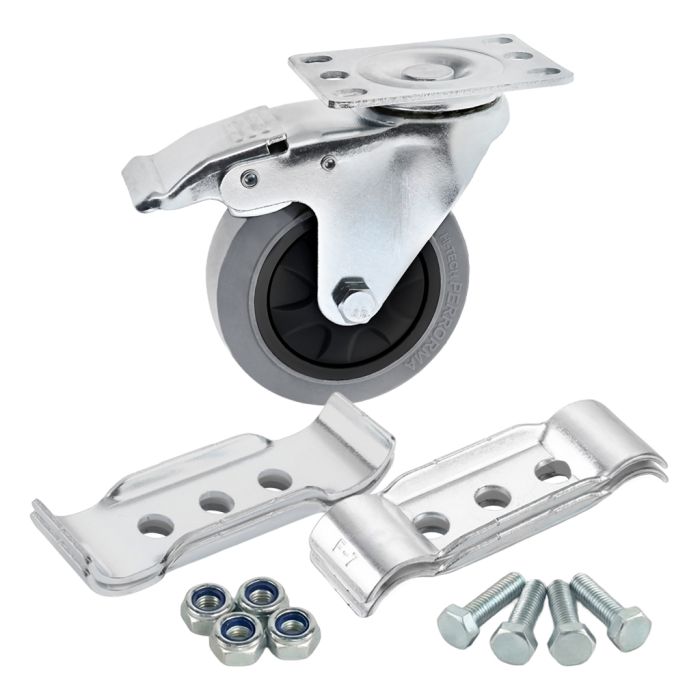

Kit Includes: (1) 4" ESD Swivel Plate Caster (EW-4PSB), (2) Caster Up Brackets (WF-UP), (2) Caster Low Brackets (WF-LOW), (4) M8 x 35mm Bolts (M8-35B), and (4) M8 Nuts (M8-N).

More Information
Box Quantity	40
Height	5 in (127 mm)
Width	1 ⅛ in (28.56 mm)
Weight	1.884 lb (0.855 kg)
Box Dimensions	Cardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm)
Common Usage	Carts
Primary Material	Thermoplastic Rubber (TPR)
Temperature Resistance	-22°F to 158°F (-30°C to 70°C)
Electric Conductivity (ESD)	Yes
Loading Capacity	250 lb (113 kg)
