SKU
EW-4PSB

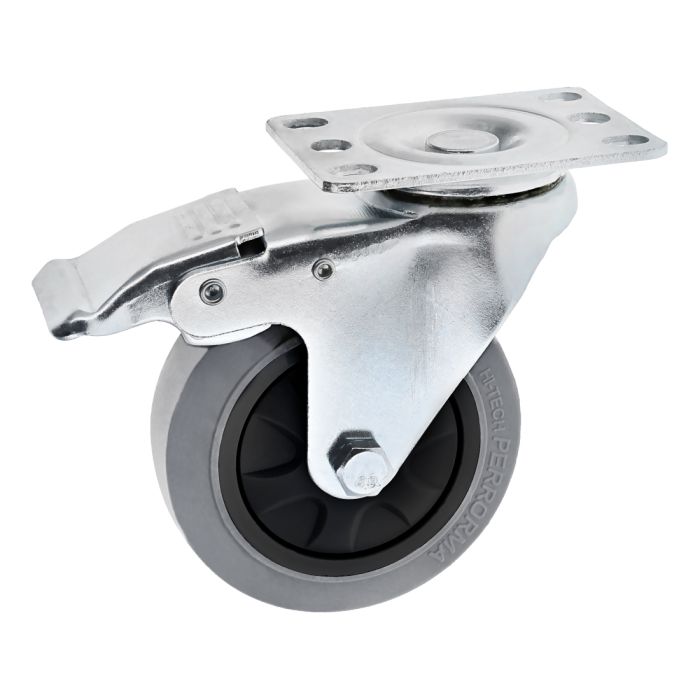

4" ESD Swivel Plate Caster with Brake

4" swivel plate-mount ESD caster with brake
CDN$26.18
Stocks
Farnham: 210
  • Antistatic material (ESD)
  • 4 inches (100 mm) diameter wheel
  • 250 lb (113.4 kg) loading capacity
  • 2.5 mph (4.02 km/h) maximum speed

The EW-4PSB 4 inch caster features a swivel plate with a lock brake, a loading capacity of 250 lb (113.4 kg), and a maximum speed of 2.5 mph (4.02 km/h). This caster is anti-static, making it ideal for environments where static discharge must be managed or prevented, such as in the electronics industry and medical device manufacturing. Typical applications include situations where equipment or products are exposed to static electricity.

To secure the caster to your structure, ensure you have two WF-UP, two WF-LOW, four M8-35B, and four M8-N. Refer to the Installation Steps tab for detailed installation instructions.

4 Inches Casters Are Ideal For:

  • Longer trips (up to 100 feet)
  • Higher frequency trips (100 to 150 times a day)
  • Carts weighing more than 400 lb (181.44 kg)
  • Larger carts (over 24 inches wide and 48 inches long)

For heavy-duty uses, consider the EW-6PSB caster.

All casters are equipped with precision ball bearings. For carts used outdoors, on ramps, or on damaged floors, 6 inch casters are recommended.

More Information
Box Quantity40
Height5 1/8 in (130 mm)
Width 1 ⅛ in (28.56 mm)
Weight1.9 lb (0.855 kg)
Box DimensionsCardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm)
Common UsageChariots
Primary MaterialThermoplastic Rubber (TPR)
Temperature Resistance-22°F to 158°F (-30°C to 70°C)
Frequency of UseMedium
Electric Conductivity (ESD)yes
Loading Capacity250 lb (113 kg)
