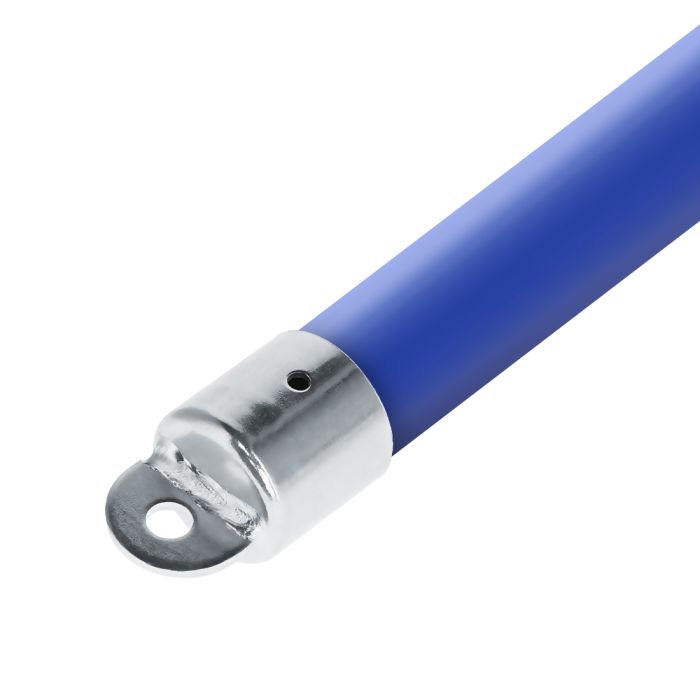

The AP-HOLE is a single metal connector that can be used with the AP-SLEEVE for various setups.
Used it to incorporate adjustable shelving to any Flexpipe structure or
as a guard to protect parts from falling out.
There are many ways to utilize, imagination is the key!
See the installation steps tab to view how to install the AP-HOLE
Want to reuse parts of your old system?
The AP-HOLE is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
|Units per box (sold separately)||165|
|Unit weight pounds||0.90 lbs (0.041 kg)|
|Box dimensions inches||11 X 9 X 5 in (279mm X 229mm X 127mm)|
|Compatible pipe systems||Flexpipe, Creform, Fastube|
|None compatible pipe systems||Trilogiq|
|Frequency of use||Very high|
|Electric conductivity (ESD)||Yes|
|Material||Hot rolled steel (SPHC)|
|Steel hardness (HRB)||0.65|
|System operational temperature||-58°F à 185°F (-50°C à 85°C)|
|Manufacturing technique||Folded and welded|
- Ensure you have the following parts:
- 1x AP-HOLE
- 1x F-A85/8
- 1x 28mm pipes of your choice
- 1x Drill w/ #2 square head
- Slide P1 pipe into the inside of AP-HOLE
- Fix the AP-HOLE to the P1 pipe with an F-A85/8 screw.
