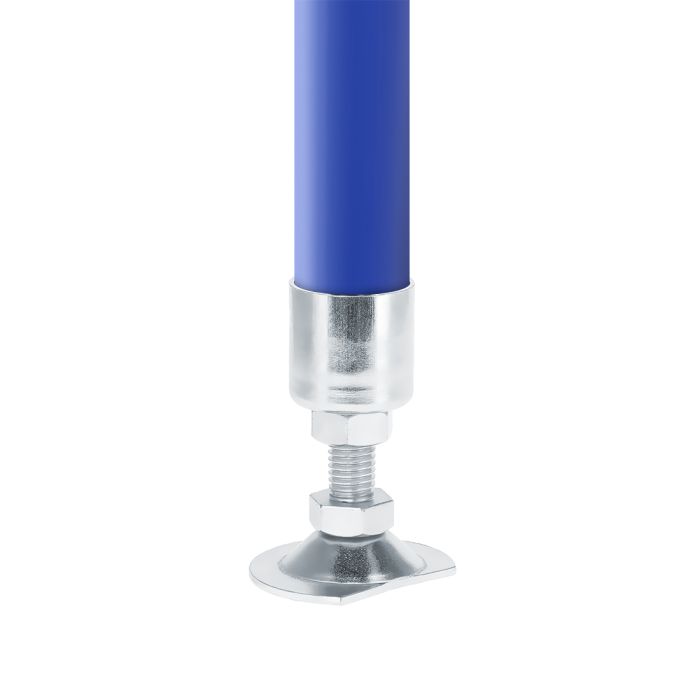

The foot is installed on the outside of the pipe.
Specifically designed to gain space by being able to be placed side by side to another structure or up against a wall.
The AF-OLEV should be avoided on soft surfaces, where it can be replaced by the AP-ICAP or the AF-RUB.
See the installation steps tab to view how to assemble the AF-OLEV.
Want to reuse parts of your old system?
The AF-OLEV is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
|Units per box||100|
|Height inches||1 2/3 in (42mm)|
|Width inches||1 1/4 in (32mm)|
|Depth inches||1 1/4 in (32mm)|
|Unit weight pounds||0.286 lbs (0.130 kg)|
|Box dimensions inches||11 X 9 X 5 in (279mm X 229mm X 127mm)|
|Compatible pipe systems||Flexpipe, Creform, Fastube|
|None compatible pipe systems||Trilogiq|
|Electric conductivity (ESD)||Yes|
|Material||Hot rolled steel (SPHC)|
|Steel hardness (HRB)||0.65|
|System operational temperature||-58°F à 185°F (-50°C à 85°C)|
|Manufacturing technique||Folded and welded|
- Ensure you have the following parts:
- 1x AF-OLEV
- 1x 28mm pipe of your choice
- 1x Mallet
- Insert the AF-OLEV completely into P1 pipe with the help of a mallet
- Adjust height if needed.
