Bushing stainless steel pipe

Name: Bushing stainless steel pipe
SKU: F-BUS
Price: 1.39 CAD
Availability: InStock

Bushing ss pipe steel zinc

Be the first to review this product

CDN$1.39

Stocks

Farnham: 369

Los Angeles: 868

Lawrenceville: 1458

A must to install AF-ILEV on stainless steel pipe
Corrosion resistant
200 units per box (please order individually)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

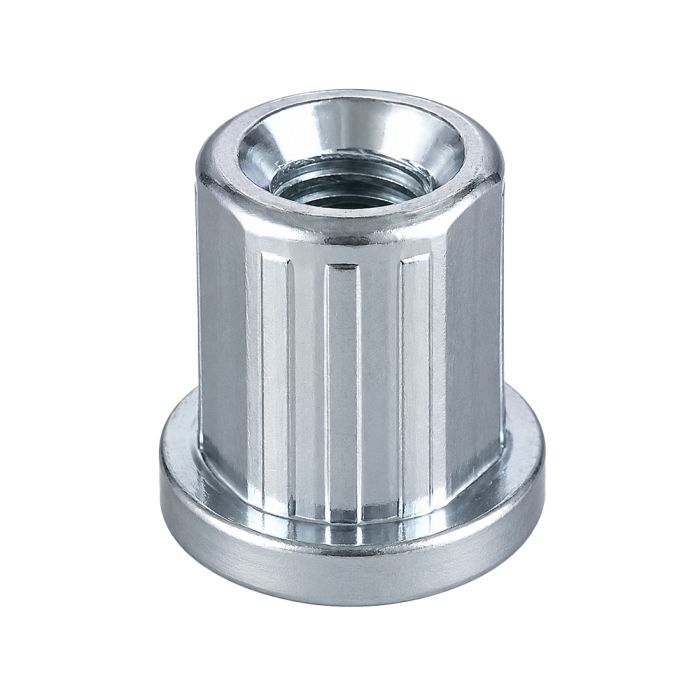

The F-BUS is a metal bushing used to make the AF-ILEV work on stainless tubes. This component is slightly bigger, intended to fit perfectly inside the interior of stainless steel pipes and only that.

Fits M12 bolt size

You will find a similar bushing already applied to the AF-ILEV. However, they have a slight size difference that makes them work only on the interior of plastic covered pipes. Be sure to have the right bushing on when installing an AF-ILEV on stainless steel pipes.

Antistatic (ESD):

Compatible with EP-96-ST

Installation Steps
See the installation steps tab to view how to install the F-BUS.

Technical Information

More Information
Units per box (sold separately)	200
Unit weight pounds	0.185 lbs (0.084 kg)
Box weight pounds	0.19 lbs ( 0.086 Kg)
Box dimensions inches	11 X 9 X 5 in (279mm X 229mm X 127mm)
Recyclable	Yes
Compatible pipe systems	Flexpipe, Creform, Fastube
Noncompatible pipe systems	Trilogiq
Reusable	Yes
Electric conductivity (ESD)	Yes
Material	Hot rolled steel (SPHC)
Steel hardness (HRB)	0.65
Finish	Glossy
System operational temperature	-58°F à 185°F (-50°C à 85°C)
Steel treatment	Galvanised
