Flat Clamp Joint Set Steel Threaded

Name: Flat Clamp Joint Set Steel Threaded
SKU: HJ-15A
Price: 2.55 CAD
Availability: InStock

• Ideal for shelving, enclosures and work surfaces within a manufacturing or production floor environment
• Utilizes a threaded hole on the lower clamp joint (H-16A) to connect the upper clamp joint (H-15) with a bolt

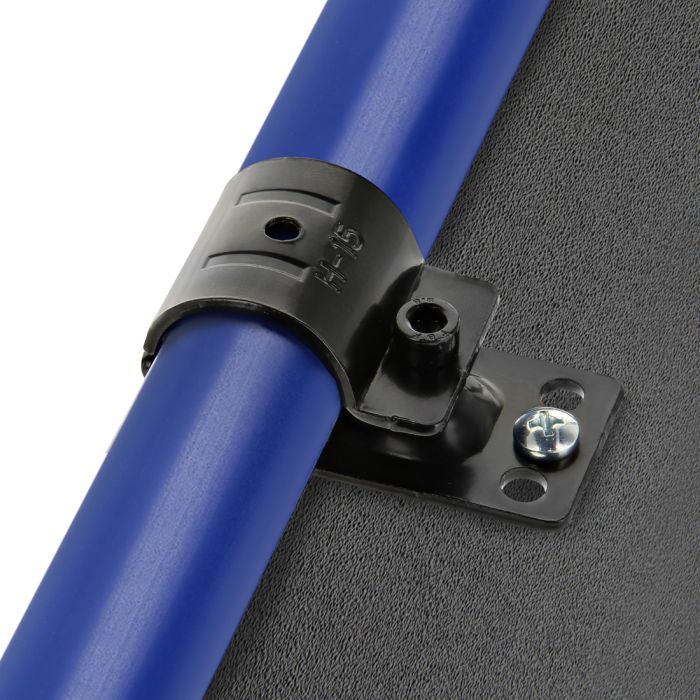

• Designed to connect Flexpipe 28mm tubing to flat panel surfaces in a vertical or horizontal orientation
• Available in black ecoating or chrome-plated (ESD-safe) steel
• Secure panels and pipe to joint using a self-drilling screw (F-A858)

Pack Size:

100

Custom Quantity

Custom Qty

CDN$2.55

(CDN$2.55 each)

Total Qty: 1

Add to Wish List

Description
Technical Information

• Ideal for shelving, enclosures and work surfaces within a manufacturing or production floor environment • Utilizes a threaded hole on the lower clamp joint (H-16A) to connect the upper clamp joint (H-15) with a bolt • Designed to connect Flexpipe 28mm tubing to flat panel surfaces in a vertical or horizontal orientation • Available in black ecoating or chrome-plated (ESD-safe) steel • Secure panels and pipe to joint using a self-drilling screw (F-A858)

More Information
Length	1 13/16 in (46 mm)
Height	1 5/16 in (33 mm)
Width	2 5/8 in (67 mm)
Material Thickness	1/8 in (3.175 mm)
Weight	0.200 lb (0.091 kg)
Compatible brand	Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Non Compatible Brand	Fastube, Trilogiq (28.6 mm)
Primary Material	Hot rolled steel (SPHC) with black cathodic electrodeposition (Ecoating)
Temperature Resistance	-148°F to 572°F (-100°C to 300°C)
Electric Conductivity (ESD)	No
Manufacturing Technique	Stamping and deburring
