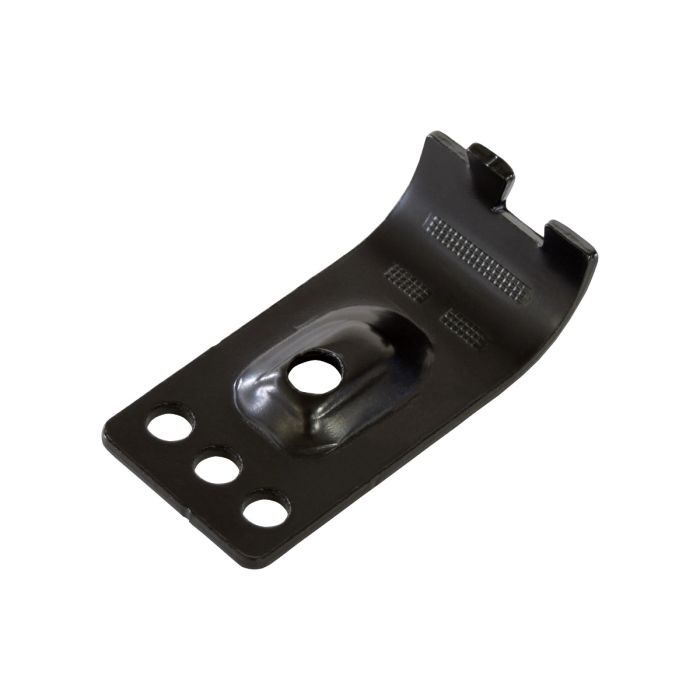

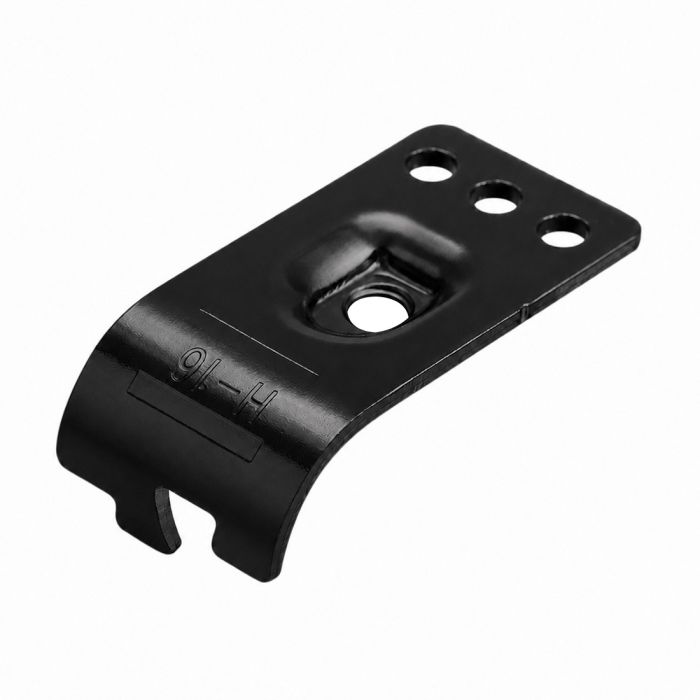

Lower Clamp Joint Steel Threaded

Name: Lower Clamp Joint Steel Threaded
SKU: H-16A
Price: 1.20 CAD
Availability: InStock

• Ideal for shelving, enclosures and work surfaces within a manufacturing or production floor environment
• Utilizes a threaded hole on the lower clamp joint (H-16A) to connect the upper clamp joint (H-15) with a bolt
• Designed to connect Flexpipe 28mm tubing to flat panel surfaces in a vertical or horizontal orientation
• Available in black ecoating or chrome-plated (ESD-safe) steel
• Secure panels and pipe to joint using a self-drilling screw (F-A858)

CDN$1.20

5,100 units in stock Location details

Add to Wish List

Description
Technical Information

• Ideal for shelving, enclosures and work surfaces within a manufacturing or production floor environment • Utilizes a threaded hole on the lower clamp joint (H-16A) to connect the upper clamp joint (H-15) with a bolt • Designed to connect Flexpipe 28mm tubing to flat panel surfaces in a vertical or horizontal orientation • Available in black ecoating or chrome-plated (ESD-safe) steel • Secure panels and pipe to joint using a self-drilling screw (F-A858)

More Information
Color	Black
Box Quantity	300
Length	2 5/8 in (67.00mm)
Height	3/4 in (19 mm)
Width	1 5/16 in (33 mm)
Weight	0.101 lb (0.046 kg)
Box Dimensions	Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Compatible brand	Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm)
Non Compatible Brand	Fastube, Trilogiq (28.6 mm)
Primary Material	Hot rolled steel (SPHC) with black cathodic electrodeposition (Ecoating)
Temperature Resistance	-148°F to 572°F (-100°C to 300°C)
Electric Conductivity (ESD)	No
Manufacturing Technique	Stamping and deburring
