6" ESD Rigid Plate Caster

Name: 6" ESD Rigid Plate Caster
SKU: EW-6PF
Price: 37.16 CAD
Availability: InStock

• Antistatic material (ESD)

• 6 inches (150 mm) diameter wheel

• 500 lb (227 kg) loading capacity

• 2.5 mph (4.02 km/h) maximum speed

Pack Size:

Custom Quantity

Custom Qty

CDN$37.16

(CDN$37.16 each)

Total Qty: 1

588 units in stock Location details

Add to Wish List

Description
Technical Information

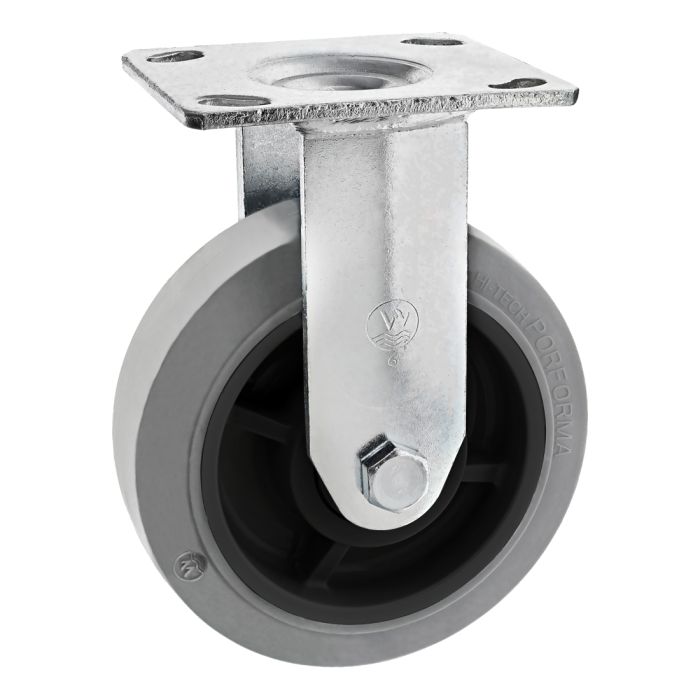

The EW-6PF, 6 inch casters are made for carts that will go outside, roll on ramps or damaged floors. This wheel is used for heavy duty structures like carts that transport massive parts and racks which need enormous support capacity. It's ideal for use in industrial settings such as large workstations and material handling solutions.

Caster features a rigid plate and has a double ball bearing
The wheel is made of thermoplastic rubber, providing durability and reliability
Caster is anti-static (ESD), making it ideal for environments where static discharge must be managed or prevented.The casters have a double ball bearing
Loading capacity of 500 pounds (227 kg)
Maximum speed of 2.5Mph (4.02 km/h)
To secure caster to your structure, you'll need to have (4) Extended Brackets for 6" Casters (WF-LARGE), (4) M8 x 45mm Bolts (M8-45B), (4) M8 Nuts (M8-N) and (8) Washers (F-W516).

To make it easier for you, we created a kit of this caster with all the necessary hardware: EW-6PF-KIT.

More Information
Box Quantity	12
Height	7 ½ in (190 mm)
Width	1 ⅝ in (41.28 mm)
Weight	3.91 lb (1.773 kg)
Box Dimensions	Cardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm)
Common Usage	Carts
Primary Material	Thermoplastic Rubber (TPR)
Temperature Resistance	-22°F to 158°F (-30°C to 70°C)
Frequency of Use	Medium
Electric Conductivity (ESD)	Yes
Loading Capacity	500 lb (227 kg)
