Spring loaded tow bar male

Spring tow bar male steel zinc
Farnham: 198
Los Angeles: 33
Lawrenceville: 230
  • Reduce forklift-related accidents
  • Helps increase productivity
  • Hardware included

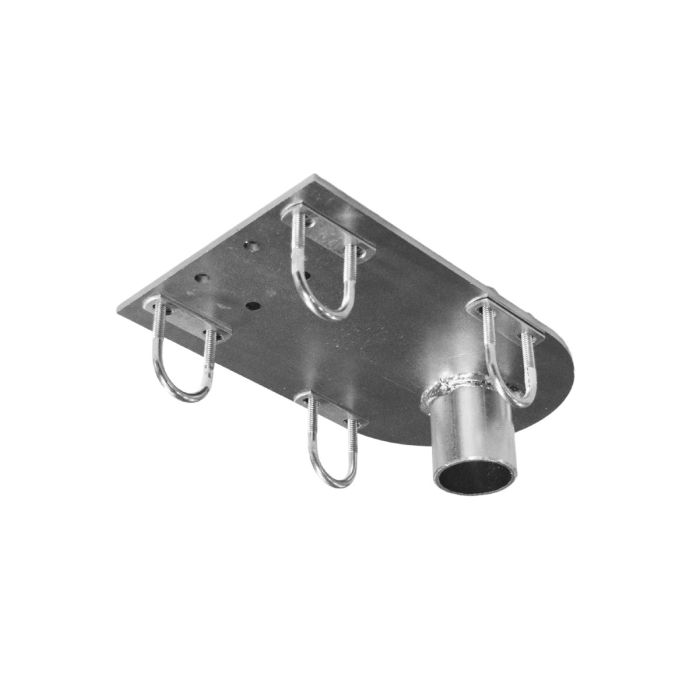

The CO-SLM is a leg wrap towbar, part of a hook and tow system that when combined with CO-SLF becomes a great asset for any company wanting to transition from the typical forklift method to a more lean tugger-train method within their facilities.

Ideal for material handling in a variety of industries, hop on the train and incorporate these components to tugger-trains, trolleys, pallet carts and any other type of transportational structure.

Not only can a single operator supply material to an area of production alone without the use of a pallet truck or forklift, it also helps to reduce forklift related accidents.

Be part of the lean trend and replenish your assembly lines with a tugger-train system.

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps
See the installation steps tab to view how to assemble the CO-SLM.

Want to reuse parts of your old system?
The CO-SLM is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.

More Information
Box Quantity1
Length10 in (254 mm)
Height2 1/4 in (57.15 mm)
Width6 in (152.4 mm)
Weight3.204 lb (1.456 kg)
Loading Capacity1570 lb maximum towing capacity

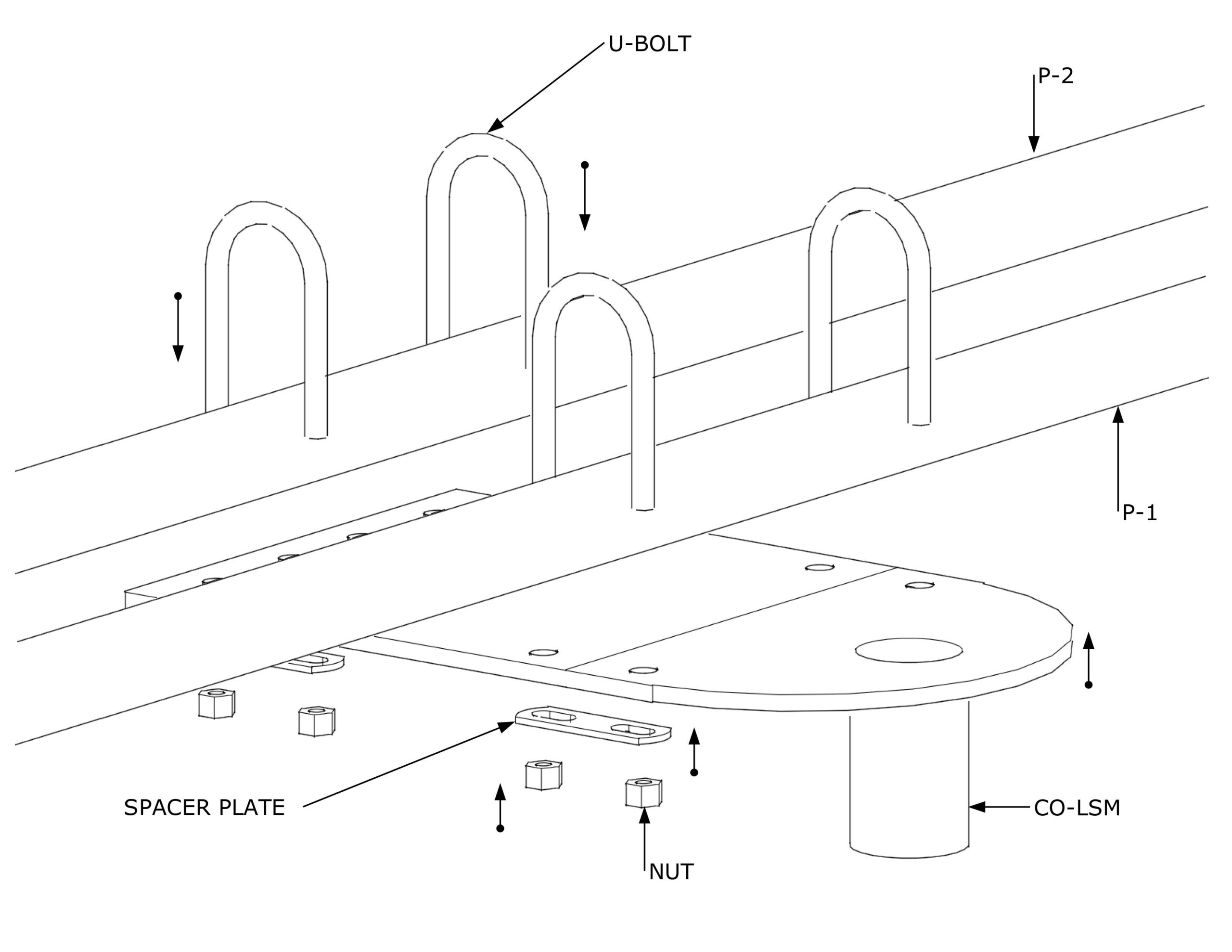

  1. Ensure you have the following parts:
    • 1x CO-SLM
    • 4x U Bolts
    • 8x Nuts
    • 4x Spacer plates
    • 2x 28mm pipes of your choice
    • 1x 13 mm Flat wrench
    • 1x 13 mm Socket wrench
  2. Place CO-SLM under P-1 and P-2 and line up corresponding holes.
  3. Install  (1) U-bolt through corresponding holes, insert spacer plate and lightly tighten using two nuts from the under side of the CO-SLM.
  4. Repeat step 3 with remaining (3) U-bolts.
  5. Once all U-bolts have been installed, proceed to fully tighten using the
    Flat and socket wrench.
