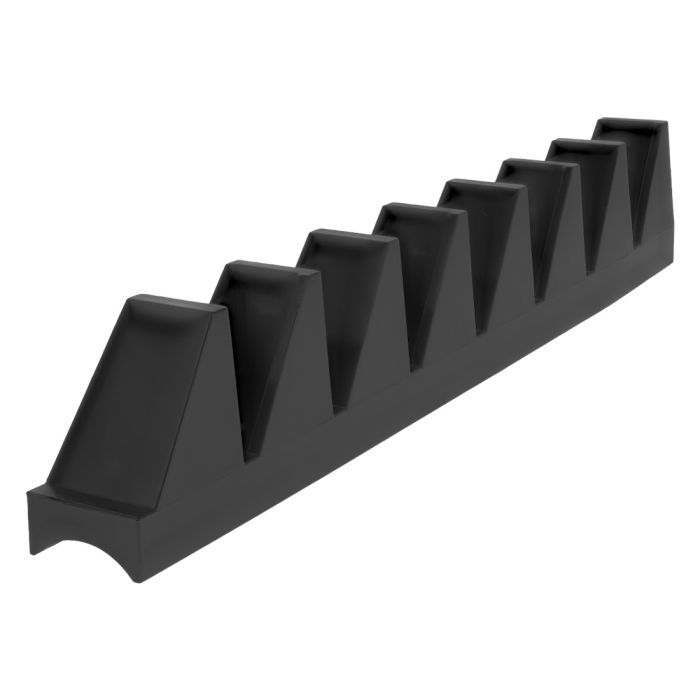

Panel Angle Support Rail

High Wear Resistance: urethane guides resists heavy friction, scratching, and tearing much better than standard rubber or plastics
Chemical and Oil Resistance: Withstands exposure to harsh industrial oils, greases, and cleaning chemicals
Edge Protection: Shielding sharp metal or glass panel edges from impact
The AO-RAIL-A features a rounded profile designed to fit securely onto a 28 mm diameter round pipe, enabling easy installation

Pack Size:

Custom Quantity

Custom Qty

CDN$4.00

(CDN$4.00 each)

Total Qty: 1

360 units in stock Location details

Add to Wish List

Description
Technical Information

The AO-RAIL-S and AO-RAIL-A are black plastic divider rails used to guide, separate, and hold parts or products in a specific position. These rails feature integrated stops and mounting holes, making them suitable for picking carts, storage solutions, workstations, and other material-handling applications.

To install the AO-RAIL-S or AO-RAIL-A, position the rail on the desired surface, then secure it using F-A858 mounting screws.

Assembly tip:

We recommend using clamps to hold the AO-RAIL-S or AO-RAIL-A in position before installing the F-A858 screws. Double-sided adhesive tape can also be used to temporarily hold the rail in place and make installation easier.

Technical note:

Make sure the rail is properly aligned before tightening the screws. Avoid overtightening the F-A858 screws, as excessive pressure could deform or damage the plastic rail.

More Information
A	.984” (25.00mm)
B	10.055” (255.40mm)
C	1.255” (31.90mm)
D	2.515” (63.90mm)
E	1.059” (26.90mm)
F	.208” (5.30mm
G	1.173” (29.80mm)
H	1.645” (41.80mm)
J	.196” (5.00mm)
Color	Black
Length	10.055 in. (255.40mm)
Height	1.645 in. (41.80mm)
Width	.984 in. (25.00mm)
Weight	0.196 lb (0.08 kg)
Common Usage	Guides, separates, and holds parts or products securely in position
Primary Material	Urethane
