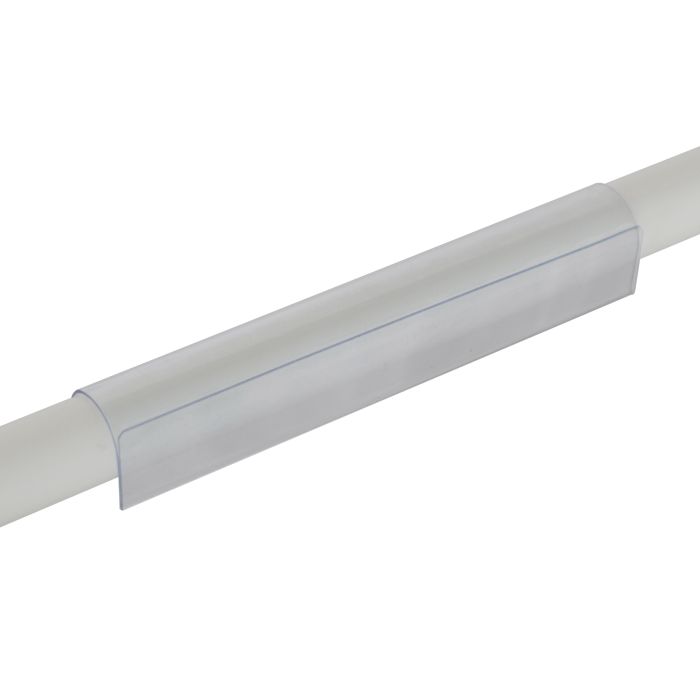

The AL-TAG1 is a hard plastic label holder for 1 by 8-inch signaling labels.
We use this holder at Flexpipe to show information on structures about their function, what parts should go on a shelf or a rack, and for all sorts of structures such as supermarkets, flowracks, carts, and racks.
You can also use it to color code structures.The applications are endless.
The AL-TAG1 is easy to cut with an Exacto knife if you need to make it smaller or if you want to make two 1 by 4-inch tags.
You can download a print template right here to create the perfect size labels for the AL-TAG1.
See the installation steps tab to view how to assemble the AL-TAG1.
Want to reuse parts of your old system?
The AL-TAG1 is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All AL-TAG1 are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of AP-HINGE you wish to receive (example; 45 units = 1 box)
|Units per box||45|
|Height inches||1 1/8 in (29mm)|
|Width inches||8 in (203mm)|
|Depth inches||1 1/8 in (29mm)|
|Unit weight pounds||0.062 lbs (0.028 kg)|
|Box dimensions inches||11 X 9 X 5 in (279mm X 229mm X 127mm)|
|Compatible pipe systems||Flexpipe, Creform, Fastube|
|None compatible pipe systems||Trilogiq|
|Electric conductivity (ESD)||Non|
|System operational temperature||-58°F à 185°F (-50°C à 85°C)|
|Manufacturing technique||injection molding|
- Ensure you have the following parts:
- 1x AL-TAG1
- 1x 28mm pipe of your choice
- Press-fit an AL-TAG1 on the P1 pipe until it covers the pipe.
