SKU
AI-CORNER

Corner bracket

Corner bracket steel zinc
CDN$1.35
Stocks
Farnham: 86
Los Angeles: 1798
Lawrenceville: 3529
  • Embed surfaces
  • Reinforce corners
  • Accentuate pipe borders

The AI-CORNER can be used to embed surfaces 3/4" to 1/4" inch in depth for carts, workstations and presentation boards. (x4) AI-CORNER

This item makes pipes stand out and accentuates the definition of the borders. We use this technique to define the board's contour and provides a frame effect with the pipes. A practical solution to prevent items from sliding off any surface.

It can also be used to reinforce the corners of structures.

Install various corners in V, C, X or square shapes to create the setup you like.

Can be combined with the AI-SUPPORT and AI-CENTER

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps:
See the installation steps tab to view how to install the AI-CORNER

Want to reuse parts of your old system?
The AI-CORNER is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.





More Information
Units per box (sold separately)60
Height inches15/16 in (24mm)
Width inches4 5/8 in (117mm)
Depth inches4 5/8 in (117mm)
Unit weight pounds0.158 lbs (0.072 kg)
Box dimensions inches11 X 9 X 5 in (279mm X 229mm X 127mm)
RecyclableYes
Compatible pipe systemsFlexpipe, Creform, Fastube
Noncompatible pipe systemsTrilogiq
ReusableYes
Electric conductivity (ESD)Yes
MaterialHot rolled steel (SPHC)
Steel hardness (HRB)0.65
FinishGlossy
System operational temperature-58°F à 185°F (-50°C à 85°C)
Steel treatmentGalvanised
Manufacturing techniqueFolded and welded

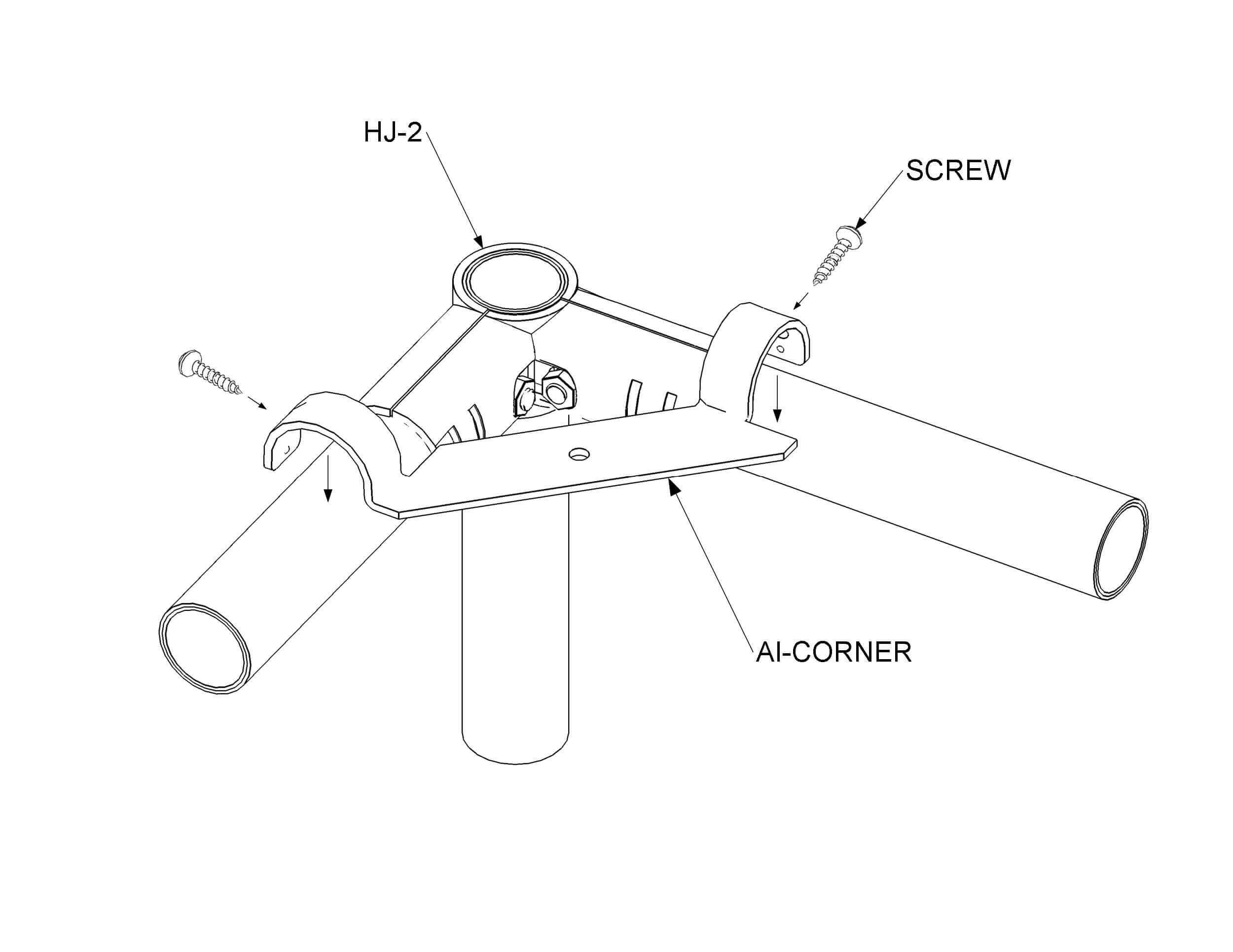

  1. Ensure you have the following parts:
    • 4x AI-CORNER
    • 8x F-A85/8
    • 4x F-S81/2
    • 2x 28mm pipes of your choice
    • 1x Surface of your choice
    • 1x Drill w/ #2 square head
  2. Press-fit AI-CORNER on P1 and P2 pipes.
  3. Fix the AI-CORNER to the P1 and P2 pipes with two F-A85/8 screws.
  4. Repeat steps 2 and 3 for the other corresponding corners.
  5. Inlay the S1 surface on the four AI-CORNER
  6. Fix the S1 surface to the four AI-CORNER with the help of four F-S81/2 screws.
