Tool Holder Attachement

Maximize work space
Holds a variety of tools
(ESD) compatible

Pack Size:

Custom Quantity

Custom Qty

CDN$12.73

(CDN$12.73 each)

Total Qty: 1

272 units in stock Location details

Add to Wish List

Description
Technical Information
Installation Steps

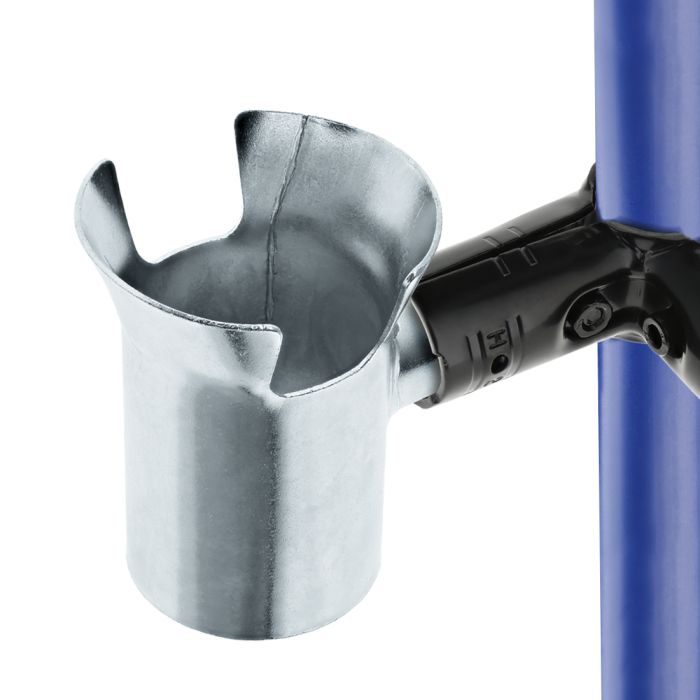

The AW-HOLDER is a metal tool holder, use it to free up valuable work space.

This product is great for implementing sleek storage in your Flexpipe structures, this accessory can be positioned nearly any way you want.

Install it with the joint set of your choice. Most of the time, we use the HJ-1 for this process. However, 80% of the joint sets are suitable for installing the holder.

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps:
See the installation steps tab to view how to install the AW-HOLDER

Want to reuse parts of your old system?
The AW-HOLDER is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.

More Information
Box Quantity	8
Length	4 3/16 in (107 mm)
Height	3 in (77 mm)
Width	2 9/16 (65 mm)
Weight	0.374 lb (0.17 kg)
Box Dimensions	Cardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Common Usage	Tool holder
Compatible brand	Flexpipe, Creform, Fastube
Non Compatible Brand	Trilogiq
Primary Material	Galvanised Hot rolled steel (SPHC)
Temperature Resistance	-58°F to 185°F (-50°C to 85°C)
Electric Conductivity (ESD)	Yes

Make sure you have the following pieces:
- 1x AW-HOLDER
- 1x HJ-1
- 1x T-HANDLE
Please check installation steps 1 to 4 of HJ-1.
Insert the AW-HOLDER into the HJ-1 board.
Tighten the M6-25B bolt and the M6-N nut together completely until the HJ-1 is firmly attached to the pipe along with the AW-HOLDER. (Tightening torque 12-14 N.m)
