SKU
AO-EMT1

Pipe clamp single mount

Pipe clamp single steel zinc
CDN$0.29
Stocks
Farnham: 3519
Los Angeles: 355
Lawrenceville: 2695
  • Secures surfaces to pipe
  • Quick installation
  • 230 units per box (please order individually)

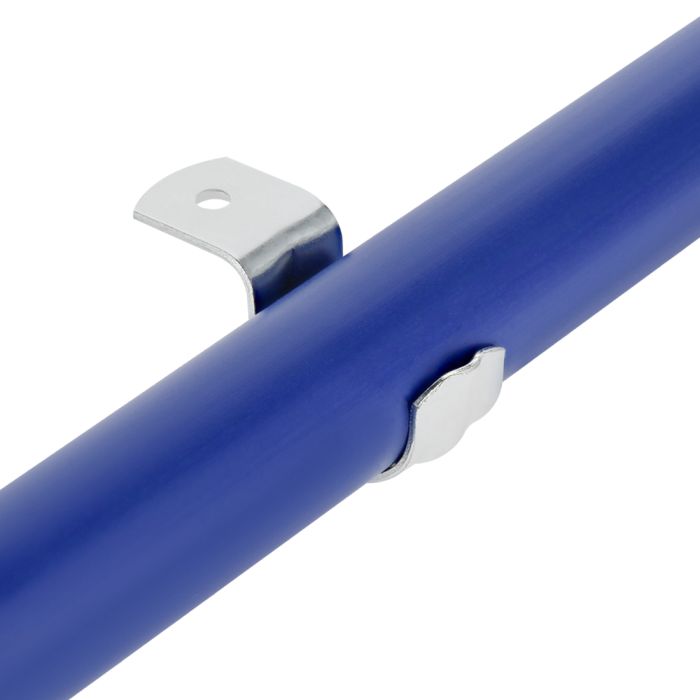

The AO-EMT1 is a single mount metal clamp.

Designed to secure surfaces to our pipe and joint structures. Unlike store-bought clamps, ours are made to fit our 28 mm pipes perfectly.

Aesthetically pleasing the clamp is installed on the underside of surfaces, ultimately creating a better look.

Another option is to use them to guide cables/wires.

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps:
See the installation steps tab to view how to install the AO-EMT1

Want to reuse parts of your old system?
The AO-EMT1 is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.

Since the AO-EMT1 allows you to secure pipes without drilling in them, you can then quickly disassemble and reuse the same pipes for other projects.

All AO-EMT1 are sold individually.
To make it easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system considers a single amount only. Please enter the total amount of clamps you wish to receive (example; 230 units = 1 box).

More Information
Box Quantity230
Length2 1/8 in (54 mm)
Height2 1/8 in (54 mm)
Width13/16 in (21 mm)
Weight0.044 lb (0.02 kg)
Box DimensionsCardboard box of 11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Compatible brandFlexpipe, Creform, Fastube
Non Compatible BrandTrilogiq
Primary MaterialGalvanised Hot rolled steel (SPHC)
Temperature Resistance-58°F to 185°F (-50°C to 85°C)
Electric Conductivity (ESD)Yes
  1. Ensure you have the following parts:
    • 1x AO-EMT1
    • 1x F-S81/2
    • 1x 28mm pipe of your choice
    • 1x Surface of your choice
    • 1x Drill w/ #2 square head
  2. Press-fit AO-EMT1 unto P1 pipe in the desired position.
  3. Fix the AO-EMT1 to the surface S1 with one F-S81/2 screw.
