8'' PLATE FIX CASTER KIT
- Hardware included+ 8x F-W516
- 1200 lb (500 kg) loading capacity
- 2.5 mph maximum speed
- Polyurethane wheel thread for smooth push
In stock

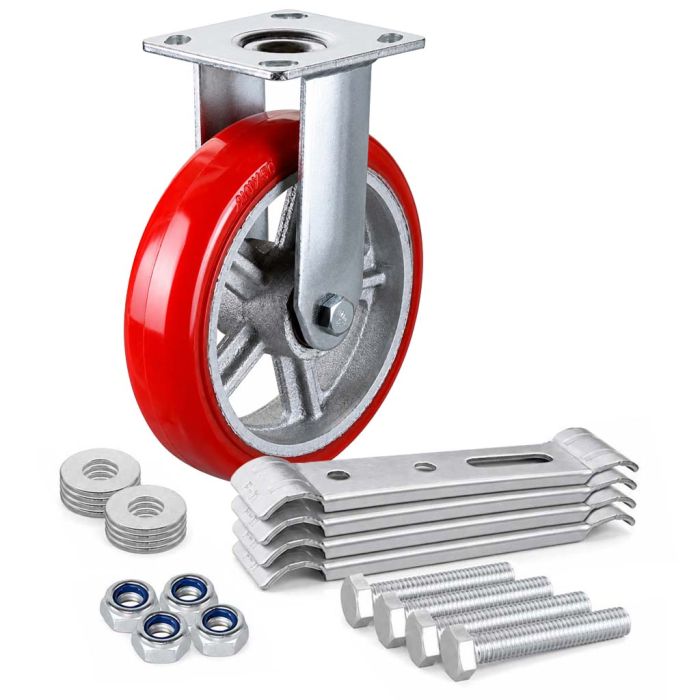

The Ergonomic 8'' Fix Plate-Mount Caster Kit is designed for heavy-duty applications requiring fixed-direction manual movement.
This kit includes all necessary mounting hardware: 4x WF-LARGE brackets, 4x M8-45B bolts, 4x M8-N nuts, and 8x F-W516 washers for secure installation.
Perfect for carts that need to be pushed in a straight line, this caster reduces push/pull forces thanks to its polyurethane (PU) wheel thread, which handles debris, resists oil and grease, and ensures a smooth and ergonomic operation.
Built to handle loads up to 1200 lb (500 kg), the caster features a 5 mm thick steel fork and a durable top plate, compatible with Flexpipe's Square Series metal framing, ensuring versatility in various industrial settings where manual movement is required.
Box Quantity | 8 |
---|---|
Width | 2 in (50 mm) |
Weight (kg/lbs) | 10.2 lb (4.65 kg) |
Box Dimensions | Cardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm) |
Common Usage | Manual hand push cart such as WIP carts, Kitting carts, Transport carts |
Primary Material | Red Polyurethane (PU) for wheel thread |
Secondary Material | 3/16'' (5 mm) steel thick for caster bracket |
Temperature Resistance | -22°F to 158°F (-30°C to 70°C) |
Frequency of Use | Medium |
Electric Conductivity (ESD) | No |
Loading Capacity | 1200 lb ( 500 kg) |
