8" Swivel Plate Caster with Brake

1200 lb (500 kg) loading capacity
2.5 mph maximum speed
Easy to push with polyurethane wheel thread
Total brake lock for secure handling

Pack Size:

Custom Quantity

Custom Qty

CDN$59.45

(CDN$59.45 each)

Total Qty: 1

255 units in stock Location details

Add to Wish List

Description
Technical Information

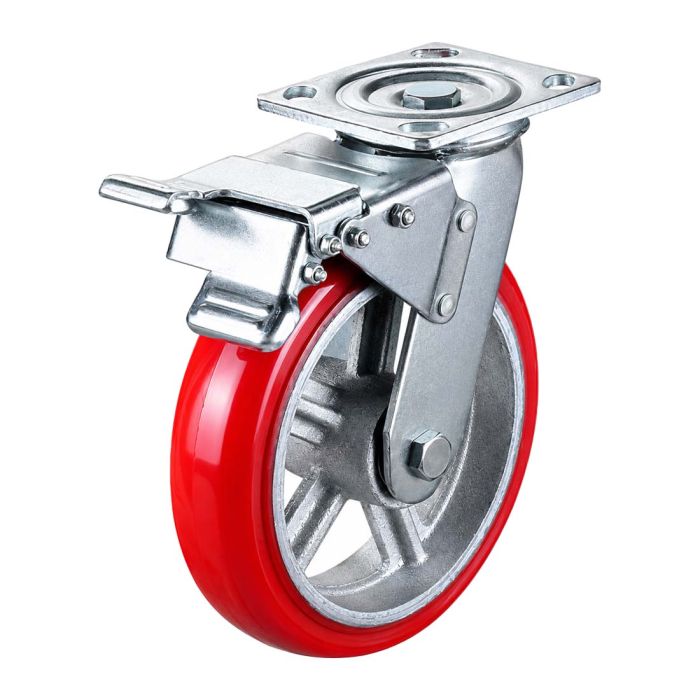

This Ergonomic 8'' Swivel Plate-Mount Caster with Brake is ideal for heavy carts that require manual pushing. Its design reduces push/pull force, thanks to the optimized height and polyurethane (PU) wheel thread. The PU material handles debris, resists oil and grease, and withstands impacts.

The caster features a total brake lock, securing both the wheel and swivel rig for maximum stability.
Maintenance-free double-sided sealed precision ball bearings, this caster ensures smooth performance.
Load capacity up to 1200 lbs (500 kg)
Built with a solid thread, a 5 mm thick steel fork, and a top plate compatible with standard mounting holes.

For secure installation, this caster requires (4) Extended Brackets for 8" Casters WF-LARGE, (4) M8 x 45mm Bolts M8-45B, (4) M8 Nuts M8-N and (8) Washers F-W516 .

Like the W-6PSB model. it can also be used with Flexpipe's Square Series framing, ideal for manual push carts at walking speed.

More Information
Box Quantity	6
Height	9.5 in (240.5 mm)
Width	2 in (50 mm)
Weight	12.6 lb (5.7 kg)
Box Dimensions	Cardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm)
Common Usage	Manual hand push cart such as WIP carts, Kitting carts, Transport carts
Primary Material	Red Polyurethane (PU) for wheel thread
Secondary Material	3/16'' (5 mm) thick steel for caster support
Temperature Resistance	-22°F to 158°F (-30°C to 70°C)
Frequency of Use	Medium
Electric Conductivity (ESD)	No
Loading Capacity	1200 lb ( 500 kg)
