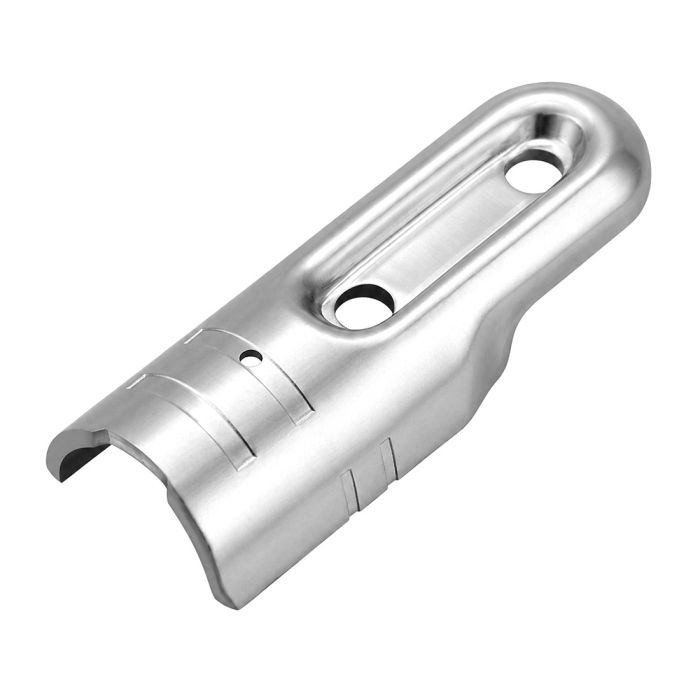

Extended pivot joint
- Connector used to assemble the HJ-6ANP joint set
- Compatible with 28 mm pipes
- 180 units per box (please order individually)
- Electric conductivity (ESD) joint
The H-6ANP is a chrome plated single joint with antistatic properties (ESD) used to assemble the HJ-6ANP joint set. This part is used to create joint sets with a high rotational capacity. The HJ-6ANP allows the largest corner radius of any Flexpipe joint sets.
Technical Informations:
This connector is designed with 2 striations for a better on the plastic coating of the 28 mm pipes.
Non-Electric Conductivity Version:
A black version of this item if offered without antistatic properties: H-6A
Want to reuse parts of your old system?
The H-6ANP Flexpipe joint is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and none-compatible with our parts.
All our joints are sold individually.
To make is easier for you, we indicated the quantity included in a box if you want to order a complete box. However, our order system consider single amount only. Please enter the total amount of joint you wish to receive (example; 180 units = 1 box).
| Units per box (sold separately) | 180 units per box |
|---|---|
| Length inches | 3 1/2 in (89 mm) |
| Height inches | 3/4 in (19 mm) |
| Width inches | 1 5/16 in (33 mm) |
| Depth inches | 1 5/16 in (33mm) |
| Steel thickness inches | 1/8 in (2.5mm) |
| Unit weight pounds | 0.145 lbs (0.066 kg) |
| Box dimensions inches | 11 X 9 X 5 in (280mm X 225mm X 130mm) |
| Compatible joint systems | Creform, NIS, C Tek Lean Solutions, Trilogiq (28 mm) |
| Noncompatible joint systems | Fastube, Trilogiq (28.6 mm) |
| RoHS certification | Yes |
| Recyclable | Yes |
| Compatible pipe systems | Creform, Fastube, Trilogiq (28 mm), NIS (28 mm), C Tek Lean Solutions (28 mm) |
| Noncompatible pipe systems | Trilogiq (28.6 mm) |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 68-75 HRB |
| Finish | Shiny |
| System operational temperature | -148°F to 572°F (-100°C to 300°C) |
| Steel treatment | Chrome plating |
| Manufacturing technique | Stamping and deburring |
| Striations for grip | 2 striation grip lines |
| Positioning guide | 2 positioning guide lines |
| Additional reinforcement hole | None |
