The AW-HOOK is a metal hook used in the Flexpipe system to hang pipes and all kinds of equipment.
This HOOK is easily movable and can be used to hang pipes, but it can also be used to hang tools, bands, certain types of wires, a curtain and of course the parts that compose the product your business is building.
You can install multiple AW-HOOK to create a series which can increase strength and weight capacity as whole.
This accessory is as versatile as your imagination, if you think that this product is not the solution,

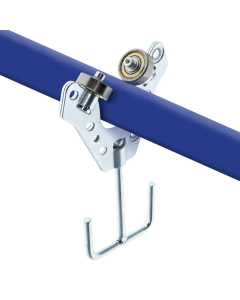

check the AW-ROLLER.
See the installation steps tab to view how to install the AW-HOOK
Want to reuse parts of your old system?
The AW-HOOK is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
|Units per box (sold separately)
|3 3/4 in (95mm)
|2 5/16 in (59mm)
|3/16 in (5mm)
|Unit weight pounds
|0.044 lbs (0.020 kg)
|Box dimensions inches
|11 X 9 X 5 in (279mm X 229mm X 127mm)
|Compatible pipe systems
|Flexpipe, Creform, Fastube
|Noncompatible pipe systems
|Electric conductivity (ESD)
|Hot rolled steel (SPHC)
|Steel hardness (HRB)
|System operational temperature
|-58°F à 185°F (-50°C à 85°C)
|Folded and welded
- Ensure you have the following parts:
- 1x AW-HOOK
- 1x 28mm pipes of your choice
- Slide AW-HOOK on the P1 pipe to the desired location.
