SKU
14197

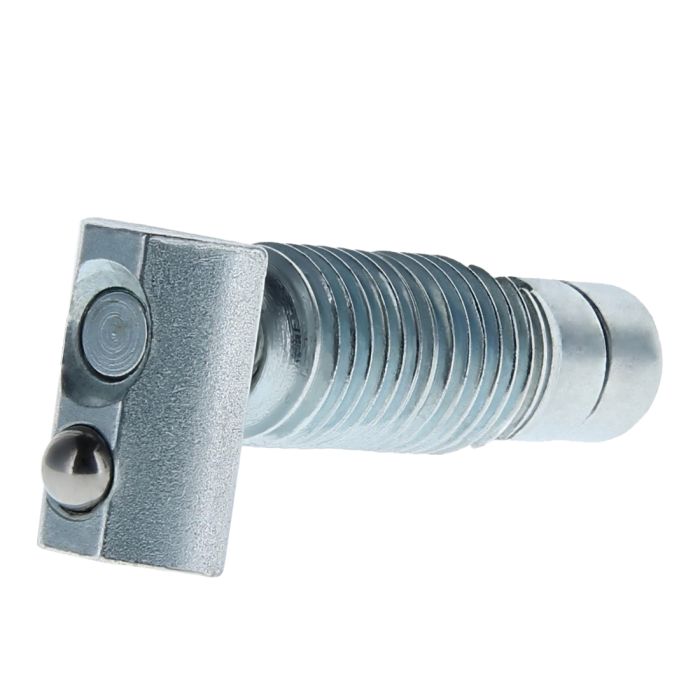

15 & 40 Series T-Matic Connector
CDN$7.28
Products You May Also Need
Internal fastener that requires no machining
Compatible with 15 and 40 Series profiles
Infinite positioning along the T-Slot profile
Two ways to install: Slide into the end of profile or install on captivated profiles with Roll-in T-nut
Left-handed barrel thread to prevent loosening during installation
Holding force exceeding 600 lbs and torsional strength over 500 in-lbs.
Install barrel thread with 6mm ball end power bit (PN 65-6092). Use 5mm ball end hex wrench for screw (PN 65-6098).
| Series | 15 Series, 40 Series |
|---|---|
| Material | Steel |
| Color | Silver |
| Weight | 0,0673 |
| A | 1.457" (37.00 mm) |
| B | 0.358" (9.10 mm) |
| C | 0.315" (8.00 mm) |
| D | 0.527" (13.39 mm) |
| E | M12 x 1.5 |
| F | M6 x 40mm SHCS |
| G | 0.746" (19.00 mm) |
| H | 0.236" (6.00 mm) |
