Mini Monitor - ESD

Single-wire impedance design grounds and monitors the work surface
Continuously monitors the path-to-ground integrity of one operator and one ESD work surface
Antistatic properties (ESD)

CDN$344.00

Add to Wish List

Description
Technical Information

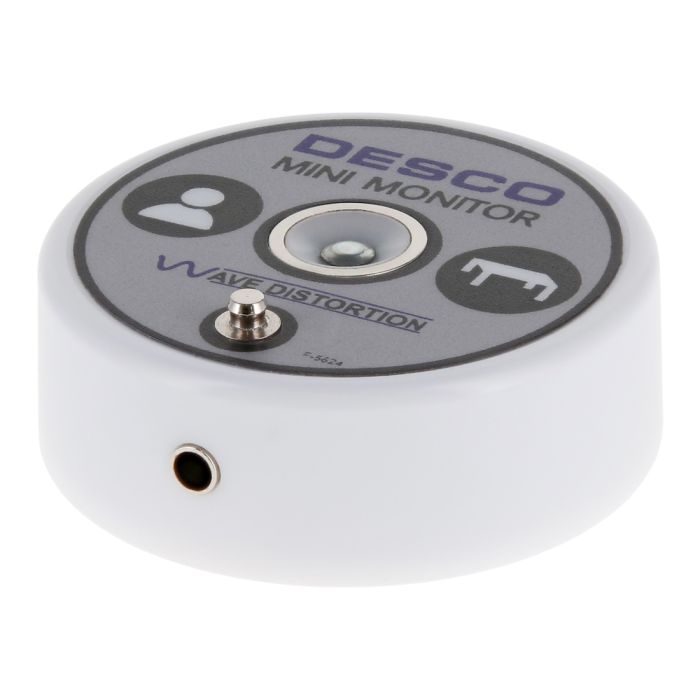

The Mini Monitor ESD is a single workstation continuous monitor designed to ensure that both an operator’s wrist strap and an ESD work surface remain properly grounded at all times.

Continuously monitors the path-to-ground integrity of one operator and one ESD work surface
Illuminates green to indicate proper grounding; illuminates red and sounds audible alarm when intermittent or failed connection occurs; illuminates blue to indicate standby mode
Single-wire impedance design grounds and monitors the work surface
<50 Millisecond Alarm Response Time Identifies failures and intermittencies that inferior technologies miss
Park Delay Timer and ParkSnap™ Indicates the 8 second delay to disconnect and park the operator wrist cord without creating a false alarm
Includes one Mini Monitor, one 100-240VAC NRTL Power Adapter with North American plug, two Counter Sunk Washers, and two Flat Head Screws 6-32 x 3/8”

More Information
Series	Fractional, Metric
Color	White
Outside Diameter	2.49" (63.00mm)
Height	0.840" (21.00mm)
Common Usage	Continuously monitors the path-to-ground integrity of one operator and one ESD work surface
Primary Material	Plastic
Secondary Material	Steel
Electric Conductivity (ESD)	Yes
