KIT de ruedas rígidas de 6''
- Hardware incluido
- Rueda de 6 pulgadas (150 mm) de diámetro
- 500 libras (227 kg) de capacidad de carga
- 2,5M/h de velocidad máxima

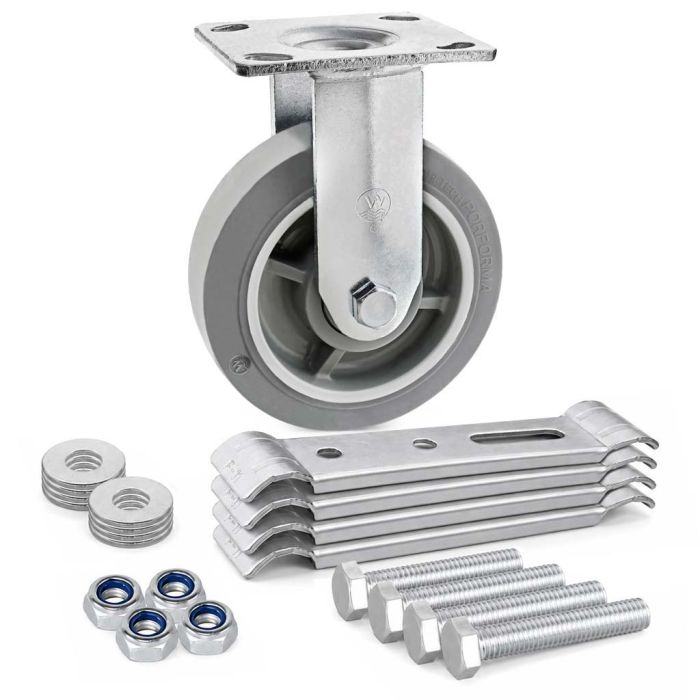

Rueda de plato rígido de 6 pulgadas con una capacidad de carga de 500 libras (227 kg) y una velocidad máxima de 2,5M/h. Para facilitarle las cosas, el W6PF-KIT viene con cuatro WF-LARGE, cuatro M8-45B, cuatro M8-N y ocho F-W5/16 sin montar. Vea la pestaña de Pasos de Instalación para más información sobre cómo instalar las ruedas W-6PF.
Las ruedas de 6 pulgadas están hechas para carros que van a salir al exterior, rodar por rampas o suelos dañados. Esta rueda se utiliza para estructuras pesadas como carros que transportan piezas masivas y estanterías que necesitan una enorme capacidad de soporte. Se trata de una pieza grande que ocupa mucho espacio, por lo que sólo debe utilizarse cuando sea necesario.
Las ruedas 6-PSB tienen un doble rodamiento de bolas, y la propia rueda está hecha de caucho termoplástico.
Box Quantity | 12 |
---|---|
Altura | 7 1/2 in (190 mm) |
Weight (kg/lbs) | 5.046 lb (2.289 kg) |
Dimensiones de la caja | Caja de cartón de 18 X 11 X 12 in (460 X 280 X 300 mm) |
Material primario | Caucho termoplástico (TPR) |
Resistencia a la temperatura | -22°F a 158°F (-30°C a 70°C) |
Conductividad eléctrica (ESD) | No |
Capacidad de carga máxima | 500 lb (227 kg) |
- Ensure you have the following parts:
- 1x W-6PF
- 4x WF-LARGE
- 4x M8-45B
- 4x M8-N
- 8x F-W5/16
- 2x 28mm pipes of your choice
- 1x Wrench
- 1x Ratchet
- Ensure that the structure is leveled when supported by the pipes that will be wheeled. Otherwise, the height difference might cause the structure to sway.
- Flip the structure for a better access to the bottom pipes.
- Ensure the pipes are parallel and have 5 in. of center spacing.
- Place the two WF-LARGE perpendiculars on the pipes.
- Place the caster on both WF-LARGE and align the openings.
- Take another WF-LARGE and regroup it with one of the WF-LARGE on the pipes.
- Take two M8-45B bolts and two M8-N nuts and insert them into the corresponding openings. Then lightly tighten them together.
- Repeat steps 6 and 7 for the other WF-LARGE and the bolts and the nuts remaining.
- Tighten completely the four M8-45B bolts and the four M8-N nuts in a cross pattern.
