Soporte de inicio de la riel de rodillos R85
- Soporte de acero con protección ESD
- Ancla rieles a tubos perpendiculares
- Ideal para racks en forma de L y Z
- Compatible con sistemas de 28 mm (1 1/16 pulg.)

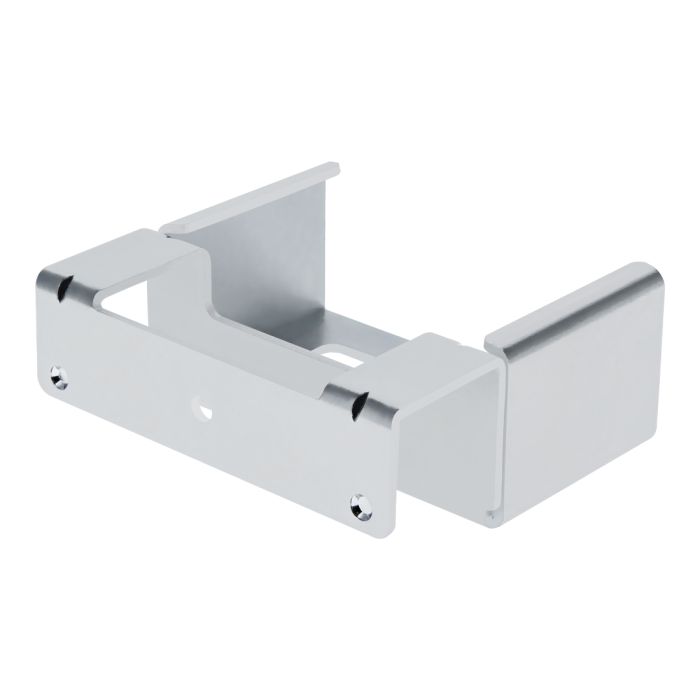

The R85-MS is an ESD steel zinc conveyor mount commonly used at the starting point of roller tracks. This item serves as an anchor between the conveyor and a perpendicular pipe. It is also used when creating L-shape and Z-shape flow racks.
The anchoring section has two little bumps to make sure the support grips the tube firmly. We recommend using an F-A858 screw to secure the support on the pipe.
All Flexpipe conveyor R85 accessories are engineered to perfectly fit the R85-RT96
The Flexpipe roller track and its accessories will work on any 28mm pipe and joint systems. Some systems don't have the same conveyor size, so be sure to check the spec sheet to see if your old conveyor parts are compatible.
Learn more on different accessories configuration on the How to build modular flow racks page. Every part of the Flexpipe conveyor system is ESD, allowing you to build antistatic structures for the transportation of electronics and electrical components.
Don't know where to begin? Our flow rack starter kit could be really helpful!
| Box Quantity | 15 |
|---|---|
| Longitud | 3 1/18 in (78 mm) |
| Altura | 1 5/16 in (33 mm) |
| Ancho | 3 9/16 in (90.6 mm) |
| Weight (kg/lbs) | 0.462 lb (0.20 kg) |
| Marca no compatible | Trilogiq |
| Material primario | Acero galvanizado laminado en caliente (SPHC) |
| Resistencia a la temperatura | -148°F a 428°F (-100°C a 220°C) |
| Conductividad eléctrica (ESD) | Si |
| Técnica de fabricación | Prensado y desbarbado |
- Ensure you have the following parts:
- 1x R85-MS
- 1x F-A858
- 1x 28mm pipe
- 1x R85-RT96
- 1x Drill
- Insert the R85-RT96 inside the R85-MS.
- Hang the R85-MS on the pipe perpendicularly.
- Screw a F-A858 in the corresponding opening through the pipe to fix the R40-MS mount.
