SKU
W-8PF

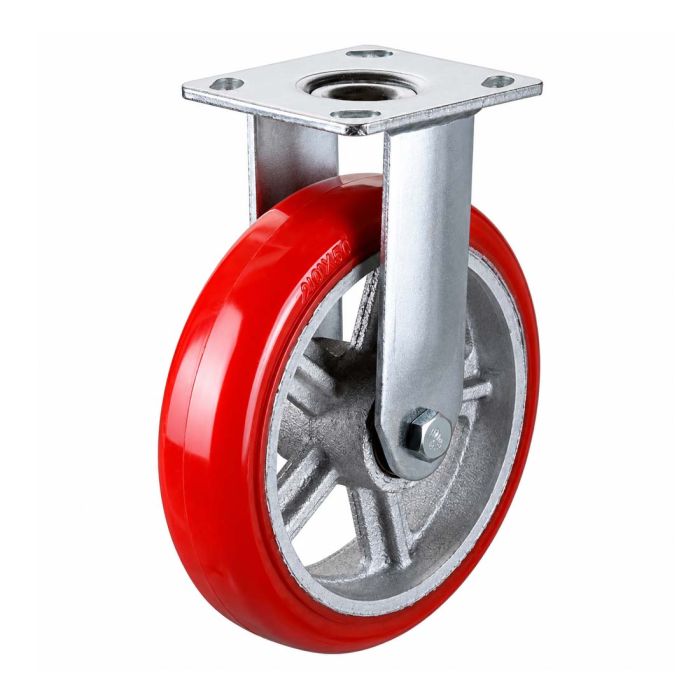

8" Rigid Plate Caster

Ergonomic 8'' Fix Plate-Mount Caster
USD$47.00
Stocks
Columbia City (IN): 80
Los Angeles (CA): 48
  • 1200 lb (500 kg) loading capacity
  • 2.5 mph maximum speed
  • Polyurethane wheel thread for smooth push
  • Maintenance-free sealed bearings

The Ergonomic 8'' Fix Plate-Mount Caster is ideal for heavy-duty applications where fixed-direction movement is required. Its polyurethane (PU) wheel thread reduces push/pull forces and resists debris, oil, and grease, ensuring a smooth, ergonomic operation.

Its sealed precision ball bearings are maintenance-free, providing long-lasting, smooth performance in tough environments.

With a load capacity of 1200 lb (500 kg), this caster is built with a 5 mm thick steel fork and a durable top plate. It’s compatible with Flexpipe's Square Series metal framing, making it suitable for a variety of industrial applications where manual carts are pushed in a straight line.

For secure installation, this caster requires the following hardware (not included):



More Information
Box Quantity8
Height9.5 in (240.5 mm)
Width2 in (50 mm)
Weight (kg/lbs)10.2 lb (4.65 kg)
Box DimensionsCardboard box of 18 X 11 X 12 in (460 X 280 X 300 mm)
Common UsageManual hand push cart such as WIP carts, Kitting carts, Transport carts
Primary MaterialRed Polyurethane (PU) for wheel thread
Secondary Material3/16'' (5mm) thick steel for caster bracket
Temperature Resistance-22°F to 158°F (-30°C to 70°C)
Frequency of UseMedium
Electric Conductivity (ESD)No
Loading Capacity1200 lb ( 500 kg)
